Product description

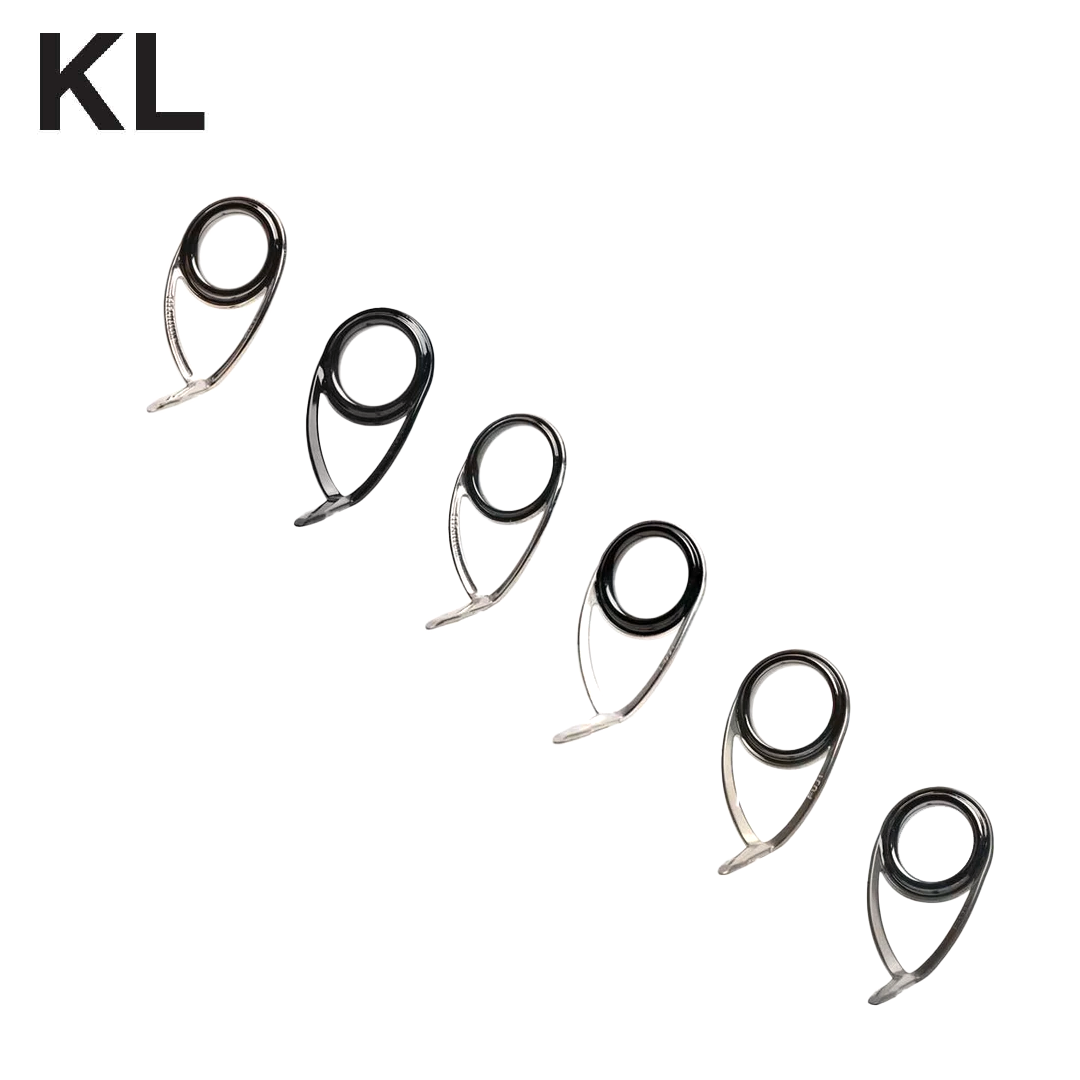

The standard single-legged KL Series Guides are to be used as starter guides on Medium and Light rods, then as intermediate guides up to the small guides before the tip.

Colors: Frosted Dark Gray Alconite/Titanium Sic/ Titanium Torzite/Frosted Silver White Alconite/ Shiny Gray Sic

Refer to dimensions to fit on your blank.

*Paiement en 3 fois disponible à partir d'un panier de 150€

Technical specifications

SKU BCKLAG-12

Marque Fuji

Poids (g) 1.06

Longueur (mm) 23.6

Montage Spinning, Carp

OD1 12.0

Céramique Alconite

Armature []

Fixation Single leg

L1 12.2 mm

Hauteur 19.7 mm

Measurement charts

Reference	H (mm)	L1 (mm)	L2 (mm)	L (mm)	ID (mm)	OD (mm)	IT (mm)
BCKLAG-12	19.7 mm	12.2 mm		23.6		12.0
BCKLAG-16	26.2 mm	14 mm		28.3		16.0
BCKLAG-20	33.5 mm	16 mm		35.0		20.0
BCKLAG-25	44 mm	19 mm		42.9		25.0
BCKLAG-30	60.5 mm	20.5 mm		53.8		30.0
T2-KLSG12S	19.7 mm	12.2 mm		23.6		12.0
T2-KLSG16S	26.2 mm	14 mm		28.3		16.0
T2-KLSG20S	33.5 mm	16 mm		35.0		20.0
T2-KLSG25S	44 mm	19 mm		42.9		25.0
T2-KLSG30S	60.5 mm	20.5 mm		53.8		30.0
TKLSG-12	19.7 mm	12.2 mm		23.6		12.0
TKLSG-16	26.2 mm	14 mm		28.3		16.0
TKLSG-20	33.5 mm	16 mm		35.0		20.0
TKLSG-25	44 mm	19 mm		42.9		25.0
TKLSG-30	60.5 mm	20.5 mm		53.8		30.0
CCKLAG-12	19.7 mm	12.2 mm		23.6		12.0
CCKLAG-16	26.2 mm	14 mm		28.3		16.0
CCKLAG-20	33.5 mm	16 mm		35.0		20.0
CCKLAG-25	44 mm	19 mm		42.9		25.0
CCKLAG-30	60.5 mm	20.5 mm		53.8		30.0
T2-KLTG12	19.7 mm	12.2 mm		23.6		12.0
T2-KLTG16	26.2 mm	14 mm		28.3		16.0
T2-KLTG20	33.5 mm	16 mm		35.0		20.0
T2-KLTG25	44 mm	19 mm		42.9		25.0
T2-KLTG30	60.5 mm	20.5 mm		53.8		30.0
TKLTG-12	19.7 mm	12.2 mm		23.6		12.0
TKLTG-16	26.2 mm	14 mm		28.3		16.0
TKLTG-20	33.5 mm	16 mm		35.0		20.0
TKLTG-25	44 mm	19 mm		42.9		25.0
TKLTG-30	60.5 mm	20.5 mm		53.8		30.0
GMKLSG-12S	19.7 mm	12.2 mm		23.6		12.0
GMKLSG-16S	26.2 mm	14 mm		28.3		16.0
GMKLSG-20S	33.5 mm	16 mm		35.0		20.0
GMKLSG-25S	44 mm	19 mm		42.9		25.0
GMKLSG-30S	60.5 mm	20.5 mm		53.8		30.0
BCKLFG-16	26.2 mm	14 mm		28.3		16.0
CCKLFG-16	26.2 mm	14 mm		28.3		16.0
CCKLFG-20	33.5 mm	16 mm		35.0		20.0
CCKLFG-30	60.5 mm	20.5 mm		53.8		30.0
