Fuji MN Series Tip Top Guide: SiC, Alconite, Torzite

Product description

Our take

The MN is the tip top you reach for as soon as a rod has to take a beating. Its wrapping tang locks the tip onto the blank on top of the glue. On a rod pushed by big fish, this is the build you come back to.

At a glance: rings 5 to 16, tubes 1.6 to 5 mm

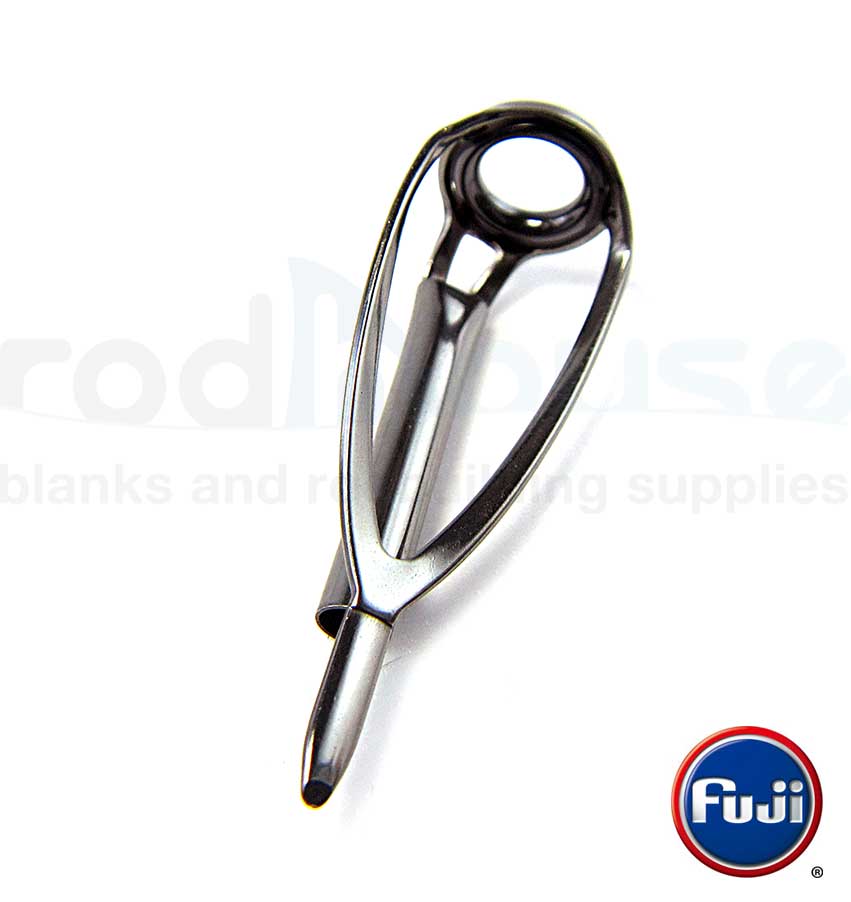

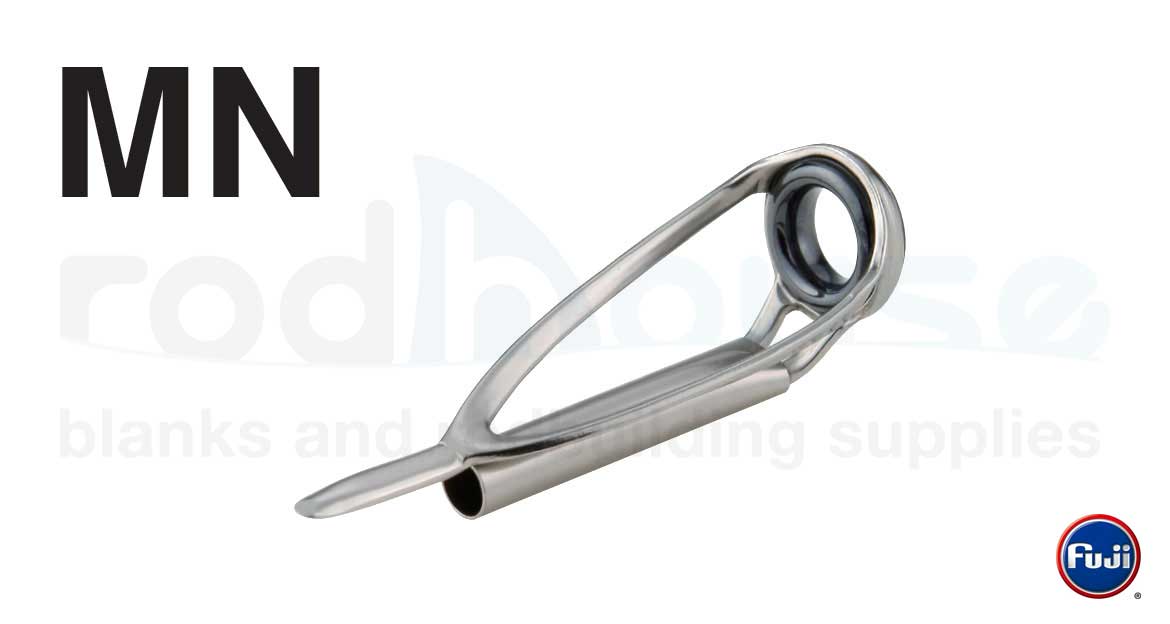

Reinforced tip top guide with a tang, for spinning and casting rods
Long-braced frame, tangle-free profile
Wrapping tang that secures the tip beyond simple gluing
Ring sizes from 5 to 16, including a 5.5 option
Tube inner diameters from 1.6 mm to 5 mm, given in mm and in 1/64 inch
Fazlite, Alconite, SiC or Torzite ceramic rings depending on the version

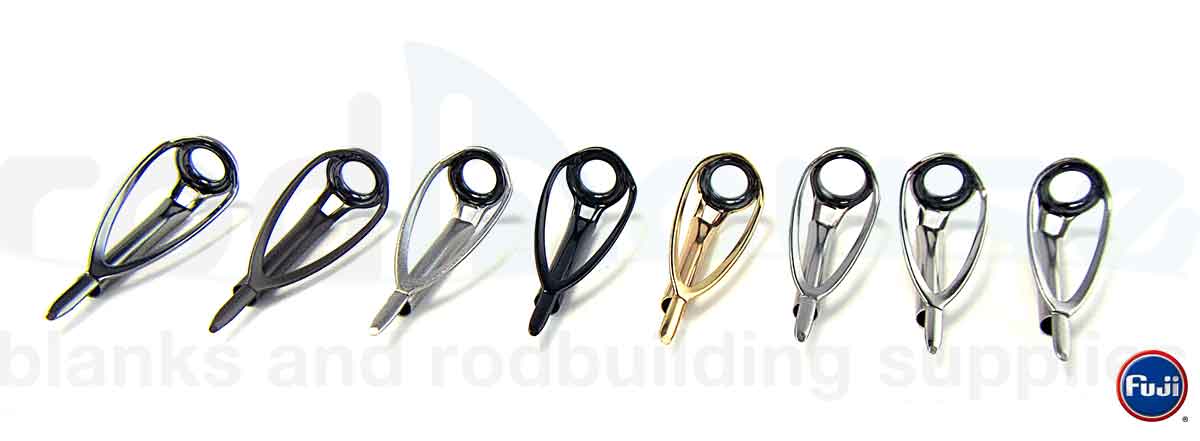

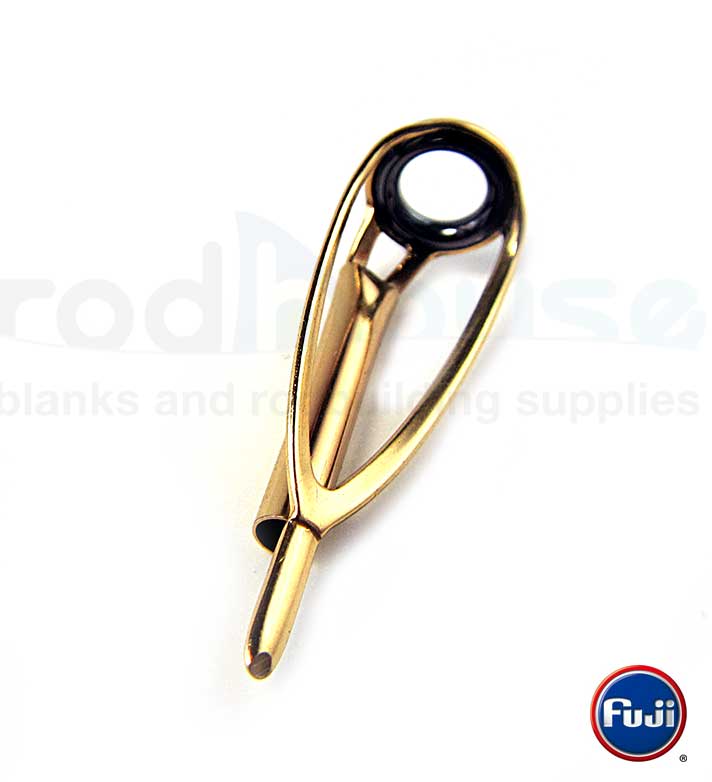

Stainless steel or titanium frames, in several finishes (P, CC, BC, Titanium...)
Works with braid, fluorocarbon and monofilament

A reinforced frame that protects your line

The wrapping tang

The MN carries a tang on its upper frame. A standard tip top holds by the glue and the tube socket alone. Here you add a wrap that ties the guide and the blank together, and holding power under heavy load moves to another level. The side braces and the sloped frame also keep the line away from the tip section, which limits loops on the cast and on the retrieve.

It makes sense to keep the same logic along the rest of the rod: the MN pairs with tangle-free Fuji guides and a winding thread chosen to match the power of the blank.

Choosing your ring size and tube diameter

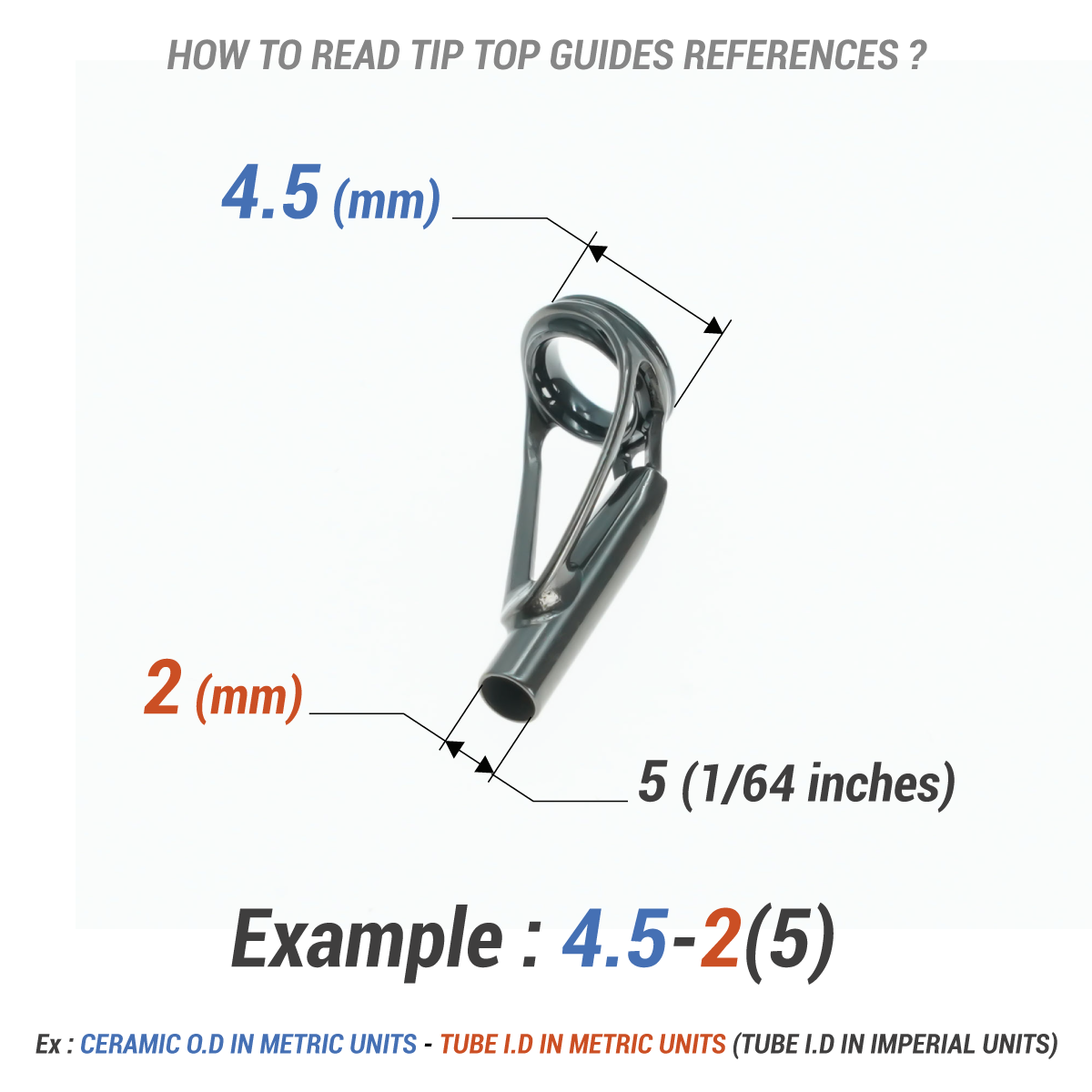

The reference reads in two parts. The first figure is the outer diameter of the ceramic ring (from 5 to 16). The second gives the inner diameter of the tube in millimetres, with its 1/64 inch equivalent in brackets: a 6-2(5) takes a 2 mm tip section. Measure the end of your blank with a caliper before ordering, and pick the tightest tube that fits.

Rings 5, 5.5 and 6: fine tip sections that need mechanical reinforcement
Rings 8 and 10: all-round predator spinning and casting / heavy duty
Rings 12 and 16: powerful fishing, big lures, jigging and saltwater or exotic use

On the ceramic side, Fazlite and Alconite cover most builds. SiC sits above them in hardness and heat dissipation, and Torzite gives the thinnest and lightest ring. Every reference is in the spinning and casting tip top guides collection.

*Payment in 3 instalments available from a cart of €150

Technical specifications

SKU IGMNST- 6-2(5)

Brand Fuji

Weight (g) 0.59

Length (mm) 26.3

Mounting Spinning, Casting, Carpe, Trolling

OD1 6.0

Ceramic SIC

Frame []

L1 6.1 mm

IT1 2 mm

Height 7.8 mm

Measurement charts

Reference	H (mm)	L1 (mm)	L2 (mm)	L (mm)	ID (mm)	OD (mm)	IT (mm)
IGMNST- 6-2(5)	7.8 mm	6.1 mm		26.3		6.0	2 mm
GMMNST -5-1.6(4)	6.1 mm	4.8 mm		17.8		5.0	1.6 mm
GMMNST - 5-1.8(4.5)	6.3 mm	5.1 mm		22.5		5.0	1.8 mm
GMMNST- 5-2(5)	6.2 mm	5 mm		22.5		5.0	2 mm
GMMNST - 5-2.2(5.5)	5.6 mm	4.9 mm		22.6		5.0	2.2 mm
GMMNST - 5-2.4(6)	5.4 mm	4.9 mm		22.7		5.0	2.4 mm
GMMNST - 5.5-2(5)	6.4 mm	5.4 mm		23.4		5.5	2 mm
GMMNST- 5.5-2.2(5.5)	6.2 mm	5.4 mm		23.3		5.5	2.2 mm
GMMNST - 5.5-2.4(6)	5.8 mm	5.4 mm		23.0		5.5	2.4 mm
GMMNST - 6-1.8(4.5)	7.7 mm	5.8 mm		23.9		6.0	1.8 mm
GMMNST - 6-2(5)	7.8 mm	6.1 mm		26.3		6.0	2 mm
GMMNST - 6-2.2(5.5)	7.5 mm	6.3 mm		26.5		6.0	2.2 mm
GMMNST - 6-2.4(6)	6.8 mm	6.2 mm		26.7		6.0	2.4 mm
GMMNST - 6-2.6(6.5)	7.6 mm	7.7 mm		31.9		6.0	2.6 mm
GMMNST - 6-2.8(7)	7.9 mm	7.6 mm		31.8		6.0	2.8 mm
GMMNST - 6-3(7.5)	7.2 mm	7.7 mm		31.9		6.0	3 mm
GMMNST - 8-2.4(6)	9.9 mm	7.3 mm		29.3		8.0	2.4 mm
GMMNST - 8-3(7.5)	9.6 mm	7.6 mm		31.7		8.0	3 mm
GMMNST - 8-3.6(9)	9.3 mm	7.9 mm		35.9		8.0	3.6 mm
GMMNST - 8-4(10)
GMMNST - 8-4.5(11)
GMMNST - 10-2(5)	12.1 mm	9.1 mm		30.3		10.0	2 mm
GMMNST - 10-2.6(6.5)	12.7 mm	8.4 mm		33.5		10.0	2.6 mm
GMMNST - 10-3(7.5)	12.2 mm	8.3 mm		33.8		10.0	3 mm
GMMNST - 12-2.6(6.5)	13.4 mm	9 mm		36.9		12.0	2.6 mm
GMMNST - 12-2.8(7)	13.6 mm	9.2 mm		36.4		12.0	2.8 mm
GMMNST - 12-3.2(8)	13 mm	9.1 mm		36.4		12.0	3.2 mm
GMMNST - 12-4(10)	12.4 mm	9.1 mm		36.8		12.0	4 mm
GMMNST - 16-3(7.5)	18.7 mm	10.1 mm		40.9		16.0	3 mm
GMMNST - 16-3.2(8)
GMMNST - 16-3.6(9)	18 mm	10.6 mm		41.0		16.0	3.6 mm
GMMNST - 16-4(10)
GMMNST - 16-4.5(11)
GMMNST - 16-5(12)

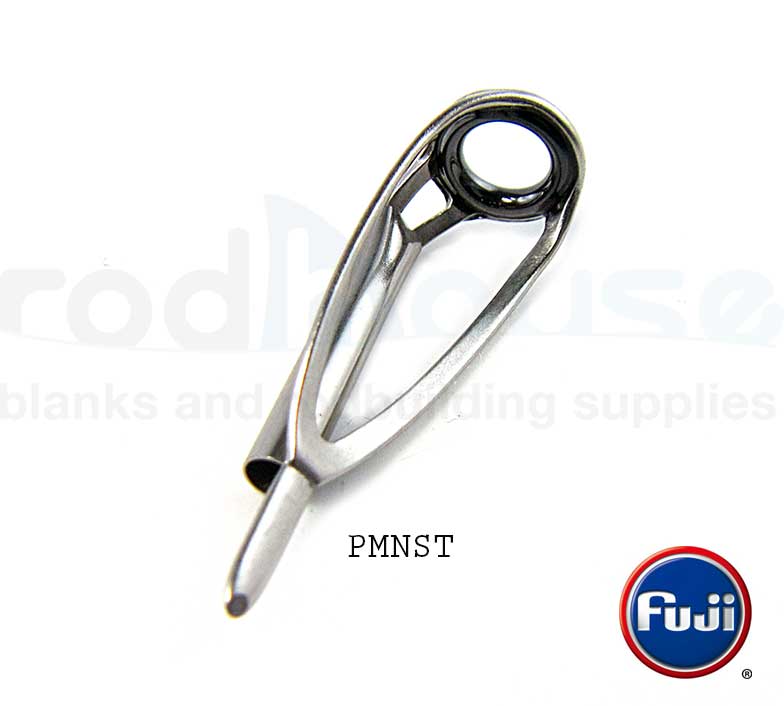

PMNST- 5-1.6(4)	6.1 mm	4.8 mm		17.8		5.0	1.6 mm
PMNST- 5-1.8(4.5)	6.3 mm	5.1 mm		22.5		5.0	1.8 mm
PMNST- 5-2(5)	6.2 mm	5 mm		22.5		5.0	2 mm
PMNST- 5-2.2(5.5)	5.6 mm	4.9 mm		22.6		5.0	2.2 mm
PMNST- 5-2.4(6)	5.4 mm	4.9 mm		22.7		5.0	2.4 mm
PMNST - 5.5-1.8(4.5)
PMNST- 5.5-2(5)	6.4 mm	5.4 mm		23.4		5.5	2 mm
PMNST- 5.5-2.2(5.5)	6.2 mm	5.4 mm		23.3		5.5	2.2 mm
PMNST- 5.5-2.4(6)	5.8 mm	5.4 mm		23.0		5.5	2.4 mm
PMNST- 6-1.8(4.5)	7.7 mm	5.8 mm		23.9		6.0	1.8 mm
PMNST- 6-2(5)	7.8 mm	6.1 mm		26.3		6.0	2 mm
PMNST- 6-2.2(5.5)	7.5 mm	6.3 mm		26.5		6.0	2.4 mm
PMNST- 6-2.4(6)	6.8 mm	6.2 mm		26.7
PMNST - 6-2.6(6.5)	7.6 mm	7.7 mm		31.9		6.0	2.6 mm
PMNST - 6-2.8(7)	7.3 mm	7.6 mm		31.8		6.0	2.8 mm
PMNST- 8-2(5)	10.1 mm	7.3 mm		29.1		8.0	2 mm
PMNST- 8-2.2(5.5)	10.2 mm	7.3 mm		29.1		8.0	2.2 mm
PMNST- 8-2.4(6)	9.9 mm	7.3 mm		29.3		8.0	2.4 mm
PMNST- 8-2.6(6.5)	10.2 mm	7.4 mm		31.2		8.0	2.6 mm
PMNST - 8-3(7.5)	9.6 mm	7.6 mm		31.7		8.0	3 mm
PMNST - 8-3.6(9)	9.3 mm	7.9 mm		35.9		8.0	3.6 mm
PMNST- 10-2.4(6)	11.4 mm	8.2 mm		30.7		10.0	2.4 mm
PMNST- 10-2.6(6.5)	12.7 mm	8.4 mm		33.5		10.0	2.6 mm
PMNST- 10-2.8(7)	12.5 mm	8.4 mm		33.6		10.0	2.8 mm
PMNST- 10-3(7.5)	12.2 mm	8.3 mm		33.8		10.0	3 mm
PMNST- 10-3.6(9)	11.2 mm	8.8 mm		36.4		10.0	3.6 mm
PMNST- 10-4(10)	10.8 mm	9.1 mm		36.9		10.0	4 mm
PMNST- 10-4.5(11)	10.5 mm	9.7 mm		36.8		10.0	4.5 mm
PMNST- 12-2.8(7)	13.6 mm	9.2 mm		36.4		12.0	2.8 mm
PMNST- 12-3(7.5)	13.4 mm	9 mm		36.6		12.0	3 mm
PMNST- 12-3.2(8)	13 mm	9.1 mm		36.4		12.0	3.2 mm
PMNST- 12-3.6(9)	12.6 mm	9.1 mm		36.8		12.0	3.6 mm
PMNST - 12-4(10)	12.4 mm	9.1 mm		36.8		12.0	4 mm
PMNST- 16-3(7.5)	18.7 mm	10.1 mm		40.9		16.0	3 mm
PMNST- 16-3.2(8)
PMNST- 16-3.6(9)	18 mm	10.6 mm		41.0		16.0	3.6 mm
PMNST- 16-4(10)
PMNST- 16-4.5(11)
PMNST- 16-5(12)

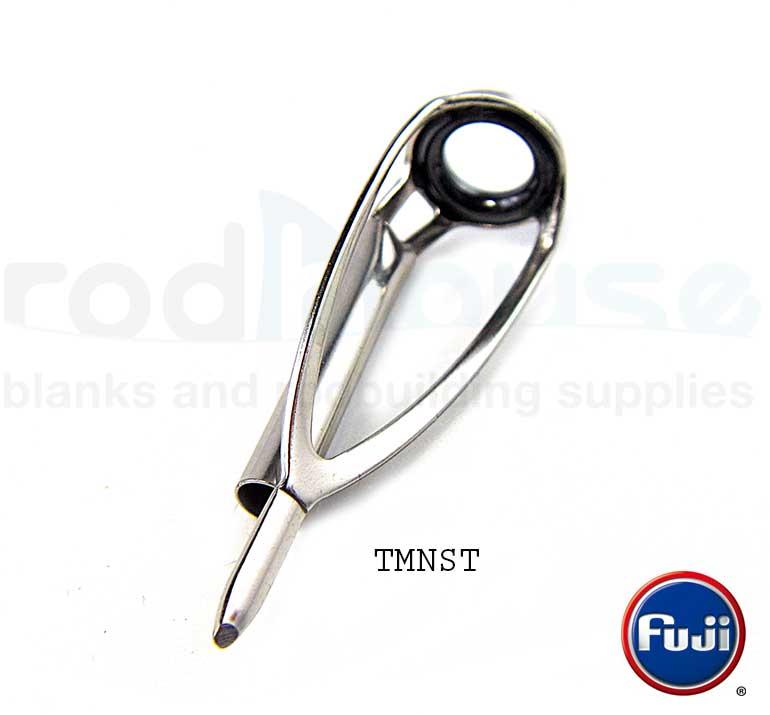

TMNST - 5-1.8(4.5)	6.1 mm	4.8 mm		17.8		5.0	1.6 mm
TMNST - 5-2(5)	6.2 mm	5 mm		22.5		5.0	2 mm
TMNST - 5-2.2(5.5)	5.6 mm	4.9 mm		22.6		5.0	2.2 mm
TMNST - 5-2.4(6)	5.4 mm	4.9 mm		22.7		5.0	2.4 mm
TMNST - 5.5-2(5)	6.4 mm	5.4 mm		23.4		5.5	2 mm
TMNST - 5.5-2.2(5.5)	6.2 mm	5.4 mm		23.3		5.5	2.2 mm
TMNST - 5.5-2.4(6)	5.8 mm	5.4 mm		23.0		5.5	2.4 mm
TMNST - 6-2(5)	7.8 mm	6.1 mm		26.3		6.0	2 mm
TMNST - 6-2.2(5.5)	7.5 mm	6.3 mm		26.5		6.0	2.2 mm
TMNST - 6-2.4(6)	6.8 mm	6.2 mm		26.7		6.0	2.4 mm
TMNST - 6-2.6(6.5)	7.6 mm	7.7 mm		31.9		6.0	2.6 mm
TMNST - 6-2.8(7)	7.3 mm	7.6 mm		31.8		6.0	2.8 mm
TMNST - 6-3(7.5)	7.2 mm	7.7 mm		31.9		6.0	3 mm
TMNST - 8-2(5)	10.1 mm	7.3 mm		29.1		8.0	2 mm
TMNST - 8-2.2(5)
TMNST - 8-2.4(5.5)
TMNST - 8-2.6(6)
TMNST - 8-3(7.5)	9.6 mm	7.6 mm		31.7		8.0	3 mm
TMNST - 8-3.6(9)	9.3 mm	7.9 mm		35.9		8.0	3.6 mm
TMNST - 10-2(5)	12.1 mm	9.1 mm		30.3		10.0	2 mm
TMNST - 10-2.6(6.5)	12.7 mm	8.4 mm		33.5		10.0	2.6 mm
TMNST - 10-2.8(7)	12.5 mm	8.4 mm		33.6		10.0	2.8 mm
TMNST - 10-3(7.5)
TMNST - 10-3.6(7)
TMNST- 12-2.6(6.5)	13.4 mm	9 mm		36.9		12.0	2.6 mm
TMNST- 12-2.8(7)	13.6 mm	9.2 mm		36.4		12.0	2.8 mm
TMNST- 12-3(7.5)	13.4 mm	9 mm		36.6		12.0	3 mm
TMNST- 12-3.2(8)	13 mm	9.1 mm		36.4		12.0	3.2 mm
TMNST- 12-3.6(9)	12.6 mm	9.1 mm		36.8		12.0	3.6 mm
TMNST- 12-4(10)	12.4 mm	9.1 mm		36.8		12.0	4 mm
TMNST- 16-3(7.5)	18.7 mm	10.1 mm		40.9		16.0	3 mm
TMNST- 16-3.2(8)
TMNST- 16-3.6(9)	18 mm	10.6 mm		41.0		16.0	3.6 mm
TMNST- 16-4(10)
TMNST- 16-2.8(6.5)
T2-MNST5-1.8(4.5)	6.1 mm	4.8 mm		17.8		5.0	1.6 mm
T2-MNST5-2(5)	6.2 mm	5 mm		22.5		5.0	2 mm
T2-MNST5-2.2(5.5)	5.6 mm	4.9 mm		22.6		5.0	2.2 mm
T2-MNST5-2.4(6)	5.4 mm	4.9 mm		22.7		5.0	2.4 mm
T2-MNST5.5-2(5)	6.4 mm	5.4 mm		23.4		5.5	2 mm
T2-MNST5.5-2.2(5.5)	6.2 mm	5.4 mm		23.3		5.5	2.2 mm
T2-MNST5.5-2.4(6)	5.8 mm	5.4 mm		23.0		5.5	2.4 mm
T2-MNST6-1.8(4.5)	7.7 mm	5.8 mm		23.9		6.0	1.8 mm
T2-MNST6-2(5)	7.8 mm	6.1 mm		26.3		6.0	2 mm
T2-MNST6-2.2(5.5)	7.5 mm	6.3 mm		26.5		6.0	2.2 mm
T2-MNST6-2.4(6)	6.8 mm	6.2 mm		26.7		6.0	2.4 mm
T2-MNST6-2.6(6.5)	7.6 mm	7.7 mm		31.9		6.0	2.6 mm
T2-MNST6-2.8(7)	7.3 mm	7.6 mm		31.8		6.0	2.8 mm
T2-MNST6-3(7.5)	7.2 mm	7.7 mm		31.9		6.0	3 mm
T2-MNST8-2(5)	10.1 mm	7.3 mm		29.1		8.0	2 mm
T2-MNST8-2.4(6)	9.9 mm	7.3 mm		29.3		8.0	2.4 mm
T2-MNST8-2.6(6.5)	10.2 mm	7.4 mm		31.2		8.0	2.6 mm
T2-MNST8-3(7.5)	9.6 mm	7.6 mm		31.7		8.0	3 mm
T2-MNST8-3.6(9)	9.3 mm	7.9 mm		35.9		8.0	3.6 mm
T2-MNST10-2(5)	12.1 mm	9.1 mm		30.3		10.0	2 mm
T2-MNST10-2.2(5.5)
T2-MNST10-2.4(6)
T2-MNST10-2.6(6.5)	12.7 mm	8.4 mm		33.5		10.0	2.6 mm
T2-MNST10-3(7.5)	12.2 mm	8.3 mm		33.8		10.0	3 mm
T2-MNST10-3.6(9)	11.2 mm	8.8 mm		36.4		10.0	3.6 mm
T2-MNST12-2.4(6)
T2-MNST12-2.8(7)	13.6 mm	9.2 mm		36.4		12.0	2.8 mm
T2-MNST12-3(7.5)
T2-MNST- 12-3.2(8)	13 mm	9.1 mm		36.4		12.0	3.2 mm
T2-MNST12-3.6(9)	12.6 mm	9.1 mm		36.8		12.0	3.6 mm
T2-MNST16-3(7.5)	18.7 mm	10.1 mm		40.9		16.0	3 mm
T2-MNST16-3.6(9)	18 mm	10.6 mm		41.0		16.0	3.6 mm
T2-MNST16-4(10)
T2-MNST16-2.8(6.5)

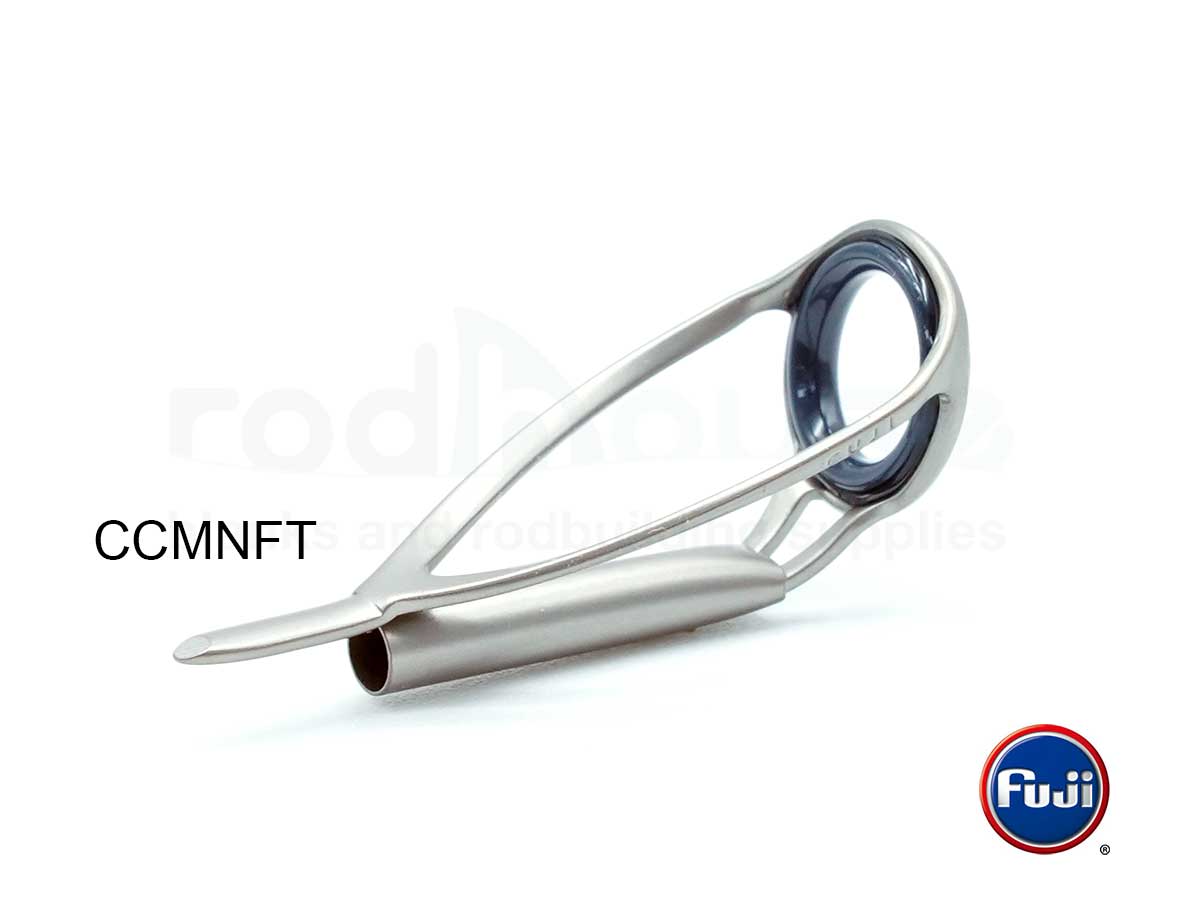

CCMNFT 10-2.8(7)	12.5 mm	8.4 mm		33.6		10.0	2.8 mm
CCMNFT 10-3.0(7.5)	12.2 mm	8.3 mm		33.8		10.0	3 mm
CCMNFT 10-3.2(8)	11.2 mm	9.1 mm		36.6		10.0	3.2 mm
CCMNFT 10-3.6(9)	11.2 mm	8.8 mm		36.4		10.0	3.6 mm

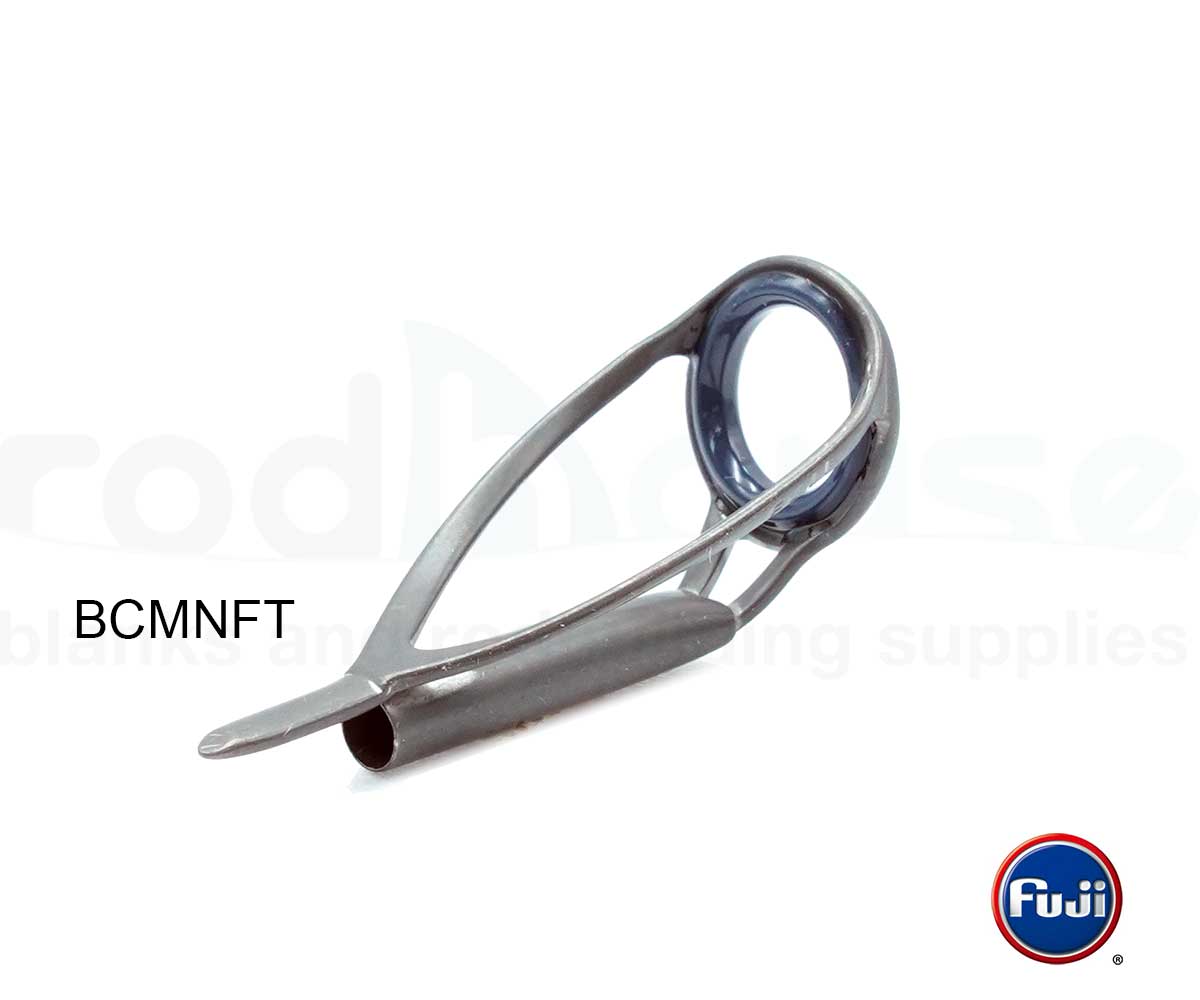

BCMNFT 10-2.8(7)	12.5 mm	8.4 mm		33.6		10.0	2.8 mm
BCMNFT 10-3.0(7.5)	12.2 mm	8.3 mm		33.8		10.0	3 mm
BCMNFT 10-3.2(8)	11.2 mm	9.1 mm		36.6		10.0	3.2 mm
BCMNFT 10-3.6(9)	11.2 mm	8.8 mm		36.4		10.0	3.6 mm
BCMNFT 10-4.0(10)	10.8 mm	9.1 mm		36.9		10.0	4 mm

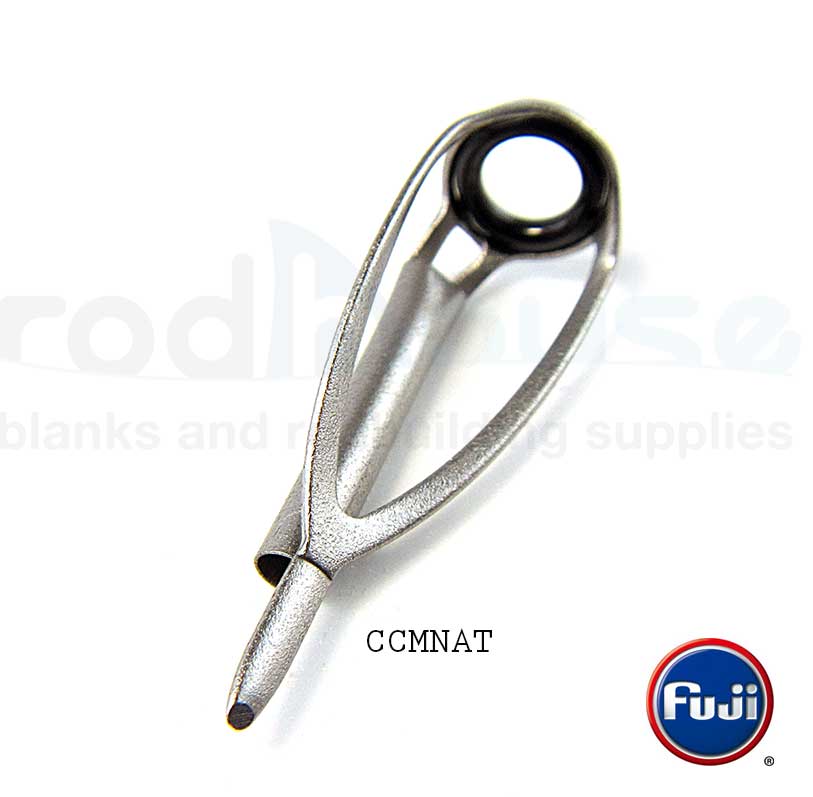

CCMNAT - 5-1.6(4)	6.1 mm	4.8 mm		17.8		5.0	1.6 mm
CCMNAT - 5-1.8(4.5)	6.3 mm	5.1 mm		22.5		5.0	1.8 mm
CCMNAT - 5-2(5)	6.2 mm	5 mm		22.5		5.0	2 mm
CCMNAT - 5-2.2(5.5)	5.6 mm	4.9 mm		22.6		5.0	2.2 mm
CCMNAT - 5-2.4(6)	5.4 mm	4.9 mm		22.7		5.0	2.4 mm
CCMNAT - 5.5-2(5)	6.4 mm	5.4 mm		23.4		5.5	2 mm
CCMNAT - 5.5-2.2(5.5)	6.2 mm	5.4 mm		22.3		5.5	2.2 mm
CCMNAT - 5.5-2.4(6)	5.4 mm	4.9 mm		22.7		5.0	2.4 mm
CCMNAT - 6-1.8(4.5)	7.7 mm	5.8 mm		23.9		6.0	1.8 mm
CCMNAT - 6-2(5)	7.8 mm	6.1 mm		26.3		6.0	2 mm
CCMNAT - 6-2.2(5.5)	7.5 mm	6.3 mm		26.5		6.0	2.2 mm
CCMNAT - 6-2.4(6)	6.8 mm	6.2 mm		26.7		6.0	2.4 mm
CCMNAT - 8-2(5)	10.1 mm	7.3 mm		29.1		8.0	2 mm
CCMNAT - 8-2.2(5.5)	10.2 mm	7.3 mm		29.1		8.0	2.2 mm
CCMNAT - 8-2.4(6)	9.9 mm	7.3 mm		29.3		8.0	2.4 mm
CCMNAT - 8-2.6(6.5)	10.2 mm	7.4 mm		31.2		8.0	2.6 mm
CCMNAT - 8-3(7)	9.6 mm	7.6 mm		31.7		8.0	3 mm
CCMNAT - 8-3.6(9)	9.3 mm	7.9 mm		35.9		8.0	3.6 mm
CCMNAT - 10-2.4(6)	11.4 mm	8.2 mm		30.7		10.0	2.4 mm
CCMNAT - 10-2.6(6.5)	12.7 mm	8.4 mm		33.5		10.0	2.6 mm
CCMNAT - 10-2.8(7)	12.5 mm	8.4 mm		33.6		10.0	2.8 mm
CCMNAT - 10-3(7.5)	12.2 mm	8.3 mm		33.8		10.0	3 mm
CCMNAT - 10-3.2(8)	11.2 mm	9.1 mm		36.6		10.0	3.2 mm
CCMNAT - 10-3.6(9)	11.2 mm	8.8 mm		36.4		10.0	3.6 mm
CCMNAT - 12-2.8(7)	13.6 mm	9.2 mm		36.4		12.0	2.8 mm
CCMNAT - 12-3(7.5)	13.4 mm	9 mm		36.6		12.0	3 mm
CCMNAT - 12-3.2(8)	13 mm	9.1 mm		36.4		12.0	3.2 mm
CCMNAT - 12-3.6(9)	12.6 mm	9.1 mm		36.8		12.0	3.6 mm
CCMNAT - 16-3(7.5)	18.7 mm	10.1 mm		40.9		16.0	3 mm
CCMNAT - 16-3.2(7.5)
CCMNAT - 16-3.6(9)	18 mm	10.6 mm		41.0		16.0	3.6 mm

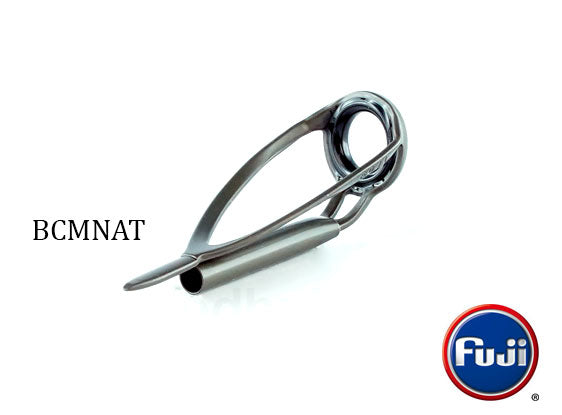

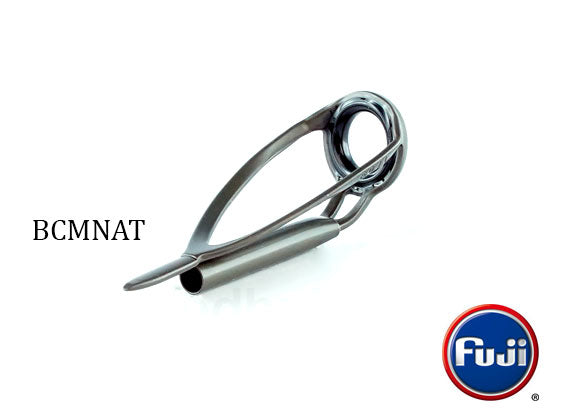

BCMNAT 5-2(5)	6.2 mm	5 mm		22.5		5.0	2 mm
BCMNAT 5-2.2(5.5)	5.6 mm	4.9 mm		22.6		5.0	2.2 mm
BCMNAT 5-2.4(6)	5.4 mm	4.9 mm		22.7		5.0	2.4 mm
BCMNAT 5.5-2(5)	6.4 mm	5.4 mm		23.4		5.5	2 mm
BCMNAT 5.5-2.4(6)	5.4 mm	4.9 mm		22.7		5.0	2.4 mm
BCMNAT 6-2(5)	7.8 mm	6.1 mm		26.3		6.0	2 mm
BCMNAT 6-2.2(5.5)	7.5 mm	6.3 mm		26.5		6.0	2.2 mm
BCMNAT 6-2.4(6)	6.8 mm	6.2 mm		26.7		6.0	2.4 mm
BCMNAT 6-2.6(6.5)	7.6 mm	7.7 mm		31.9		6.0	2.6 mm
BCMNAT 6-2.8(7)	7.3 mm	7.6 mm		31.8		6.0	2.8 mm
BCMNAT 8-2(5)	10.1 mm	7.3 mm		29.1		8.0	2 mm
BCMNAT 8-2.4(6)	9.9 mm	7.3 mm		29.3		8.0	2.4 mm
BCMNAT 8-2.6(6.5)	10.2 mm	7.4 mm		31.2		8.0	2.6 mm
BCMNAT 8-3(7.5)	9.6 mm	7.6 mm		31.7		8.0	3 mm
BCMNAT 8-3.6(9)	9.3 mm	7.9 mm		35.9		8.0	3.6 mm
BCMNAT 10-2(5)	12.1 mm	9.1 mm		30.3		10.0	2 mm
BCMNAT 10-2.6(6.5)	12.7 mm	8.4 mm		33.5		10.0	2.6 mm
BCMNAT 10-2.8(7)	12.5 mm	8.4 mm		33.6		10.0	2.8 mm
BCMNAT 10-3(7.5)	12.2 mm	8.3 mm		33.8		10.0	3 mm
BCMNAT 10-3.2(8)	11.2 mm	9.1 mm		36.6		10.0	3.2 mm
BCMNAT 10-3.6(9)	11.2 mm	8.8 mm		36.4		10.0	3.6 mm
BCMNAT 10-4(10)	10.8 mm	9.1 mm		36.9		10.0	4 mm
BCMNAT 10-4.5(11)	10.5 mm	9.7 mm		36.8		10.0	4.5 mm
BCMNAT 12-2.6(6.5)	13.4 mm	9 mm		36.9		12.0	2.6 mm
BCMNAT 12-2.8(7)	13.6 mm	9.2 mm		36.4		12.0	2.8 mm
BCMNAT 12-3(7.5)	13.4 mm	9 mm		36.6		12.0	3 mm
BCMNAT 12-3.2(8)	13 mm	9.1 mm		36.4		12.0	3.2 mm
BCMNAT 12-3.6(9)	12.6 mm	9.1 mm		36.8		12.0	3.6 mm
BCMNAT 12-4(10)	12.4 mm	9.1 mm		36.8		12.0	4 mm
BCMNAT 12-4.5(11)
BCMNAT 16-3(7.5)	18.7 mm	10.1 mm		40.9		16.0	3 mm
BCMNAT 16-3.2(8)
BCMNAT 16-3.6(9)	18 mm	10.6 mm		41.0		16.0	3.6 mm
BMNAT - 10-2(5)	12.1 mm	9.1 mm		30.3		10.0	2 mm
T2-MNTT5F-1.8
T2-MNTT5F-2.0
T2-MNTT5F-2.2
T2-MNTT5F-2.4
T2-MNTT5.5F-2.0
T2-MNTT5.5F-2.2
T2-MNTT5.5F-2.4
T2-MNTT6F-1.8
T2-MNTT6F-2.0
T2-MNTT6F-2.2
T2-MNTT6F-2.4
T2-MNTT6F-2.6
T2-MNTT6F-2.8
T2-MNTT6F-3.0
T2-MNTT8F-2.0
T2-MNTT8F-2.4
T2-MNTT8F-2.6
T2-MNTT8F-3.0
T2-MNTT8F-3.6
T2-MNTT10F-2.0
T2-MNTT10F-2.2
T2-MNTT10F-2.4
T2-MNTT10F-2.6
T2-MNTT10F-3.0
T2-MNTT10F-3.6
T2-MNTT12F-2.4
T2-MNTT12F-2.8
T2-MNTT12F-3.0
T2-MNTT12F-3.2
T2-MNTT12F-3.6
T2-MNTT16F-3.0
T2-MNTT16F-3.6
T2-MNTT16F-4.0
T2-MNTT16F-2.8

Product reviews

5 stars: 24 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

This product has no reviews of its own. The merchant grouped it with related products, so the reviews shown are from across that group.

Polished Dark Grey Titanium Sic / 10-3.6(9)

Anelli sic top

Anelli perfetti come da descrizione li adoro.Pacchetto arrivato celermente servio impeccabile

Polished dark grey titanium sic

MN titanium polished dark grey sic, les dénominations et les qualités sont un peu compliquées sur les anneaux de scion, mais j'ai trouvé mon bonheur. Impeccable !

Polished Sic / 16-3.2(8)

Anneau de qualité Livré rapidement

Anneau de qualité
Livré rapidement.
Prestation très pro!

Polished Dark Grey Titanium Torzite / 5-1.8(4.5)

Top anneau

Torzite quoi de mieux

Shiny Gray Sic / 6-2.4(6)

Parfait

Impossible d être dessus avec se genre de produit. Fuji reste Fuji. Il n’y a rien de plus à dire.

Shiny Gray Sic / 6-2.6(6.5)

Le top

Des anneaux de qualité, jamais déçu à l'heure actuelle par cette marque.

Frosted Dark Gray Alconite / 8-3(7.5)

Parfait

La qualité est la

Titanium Sic / 5-1.8(4.5)

Tip top au top

Pour moi il n y a pas mieux sur le marché

Polished Dark Grey Titanium Torzite / 5.5-2.2(5.5)

Top quality

Investir pour avoir le bénéfice d'un produit durable

Polished Dark Grey Titanium Torzite / 5.5-2(5)

Супер

Polished Titanium Torzite / 8-2(5)

Anneaux de tête pour canne Yuki 911 SF

Dommage que l'anneau était trop grand, pourtant la plus petite taille proposée. Taille que j'ai trouvé chez AliExpress

Shiny Gray Sic / 8-2.4(6)

Très bien

Polished Titanium Torzite / 10-2(5)

The customer is very pleased with torzite guides

Frosted Dark Gray Alconite / 12-3.2(8)

Série MN

L'incontournable

Shiny Gray Sic / 12-3.2(8)

Muy buen blank

Polished Dark Grey Titanium Torzite / 5-2.4(6)

Excellent

Léger très belle finition se monte parfaitement

Shiny Gray Sic / 6-3(7.5)

Valeur sûre !

Très bons anneaux, jamais déçu! Convient parfaitement pour les montages saltwater grâce à leur traitement SIC.

Anneaux Haut de gamme

Excellent matériel, j'ai déjà équipé une autre canne il y a 2 ans avec des anneaux Série MN SIC Shiny Gray, c'est de la très bonne qualité ! 👍👍💪

Titanium Sic / 16-4(10)

Au petit soin

Bravo a l'équipe, vous avez compris ma doléance, a bientôt pour une commande

Polished Sic / 16-3.6(9)

Mn sic polished

Je vais répéter la même chose que pour les kw très bonne qualité comme anneaux mais il vous manque la finition or😭

Série MN - Torzite

Polished Dark Grey Titanium Torzite / 16-3.6(9)

Série MN - Torzite

Shiny Gray Sic / 6-2.8(7)

Top

Parfait pour mon utilisation en mer sur une 10-40 g

Polished Sic / 8-3.6(9)

Série MN - SIC - Polished

Our advisors are available Monday to Friday, from 9am to 1pm and 2pm to 6pm.

Call us Send an email

Ligature Simulator

Ring armature:

Blank finish:

Ligature color:

Number of trim bands:

Trim band color 1:

Trim band 1 position:

Trim band 1 width:

Trim band color 2:

Trim band 2 position:

Trim band 2 width:

Trim band 3 color:

Trim band 3 position:

Trim band 3 width:

Colors matching the ligature thread

Colors matching trim band 1

Colors matching trim band 2

Colors matching trim band 3

Customers also loved..

SKU BCLGAT - 4-0.8

Brand Fuji

Weight (g) 0.15

Length (mm) 9.4

Mounting Spinning, Casting

OD1 4.0

Ceramic Alconite

Frame []

IT1 0.8 mm

Height 4.8 mm

Série LG

3,00€

View product

SKU T2-KGST3.5S-1.2

Brand Fuji

Weight (g) 0.08

Length (mm) 10.5

Mounting Spinning, Casting

OD1 3.5

Ceramic SIC

Frame []

IT1 1.2 mm

Height 4.8 mm

Série KG

(13)

11,10€

View product

SKU HUTIXLRST-4-1.2

Brand Sea Guide

Weight (g) 0.12

Length (mm) 12.0

Mounting Spinning, Casting, Carp

OD1 4.0

Ceramic Silicon Nitride

Frame Titanium

IT1 1.2 mm

Height 6 mm

Série TiXLT

7,60€

View product

Do you have to wrap the tang of an MN guide?

Yes, that is the principle of the series. The tube is glued onto the end of the tip section, then the tang is wrapped and coated. This wrap contributes to how the guide holds, it is not just decorative, unlike tip tops that rely on glue alone.

How do you read a reference like 6-2(5)?

The first figure is the outer diameter of the ceramic ring, here 6. The second is the inner diameter of the tube in millimetres, here 2 mm, with its 1/64 inch equivalent in brackets, so 5/64. Measure the end of your blank with a caliper before choosing.

Which ceramic should you choose between Fazlite, Alconite, SiC and Torzite?

Fazlite and Alconite suit sensible builds and all-round rods. SiC brings higher hardness and heat dissipation, useful with braid and on demanding fishing. Torzite is the thinnest and lightest ring, reserved for high-end builds.

Does the MN work as well for spinning as for casting?

Yes, the series covers both uses. Its high frame and long braces push the line away from the blank, which helps it clear itself in spinning, while keeping the stiffness that powerful casting rods need.

Stainless steel or titanium frame?

Stainless steel covers the vast majority of builds, with a wide choice of finishes. Titanium lightens the guide and resists corrosion better, a real plus in saltwater and on rods where every gram at the tip counts.

How can I get more information about a product?

You can contact our experts directly by phone at (+33) 2 97 61 29 99, or by email at contact@rodhouse.com

100% secure payments

48H express shipping

Shock-resistant packaging

An expert & passionate team

MN Series Tip Tops

Complete your purchase with:

Product description

Our take

At a glance: rings 5 to 16, tubes 1.6 to 5 mm

A reinforced frame that protects your line

The wrapping tang

Choosing your ring size and tube diameter

Technical specifications

Measurement charts

En savoir plus

Product reviews

Ligature Simulator

Colors matching the ligature thread

Colors matching trim band 1

Colors matching trim band 2

Colors matching trim band 3
