Is the KW for spinning or casting only?

Both. The KW is a versatile double foot guide: on casting rods it serves as the stripper, on spinning rods it forms the reduction train on medium to heavy blanks, as well as on surfcasting and trolling rods.

Which size should I choose as a stripper guide?

It depends on your spool diameter and the distance between the reel seat and the first guide. On a casting rod built on the KR Concept, size 10 is the reference Fuji specifies. In spinning you usually start larger, then reduce progressively towards the tip.

What do the CC and BC finishes mean?

These are Fuji's Corrosion Control finishes, a matte treatment rated up to seven times more resistant than standard stainless steel under constant salt exposure. They are the ones to pick for saltwater. The rest of the range is in our Fuji guides.

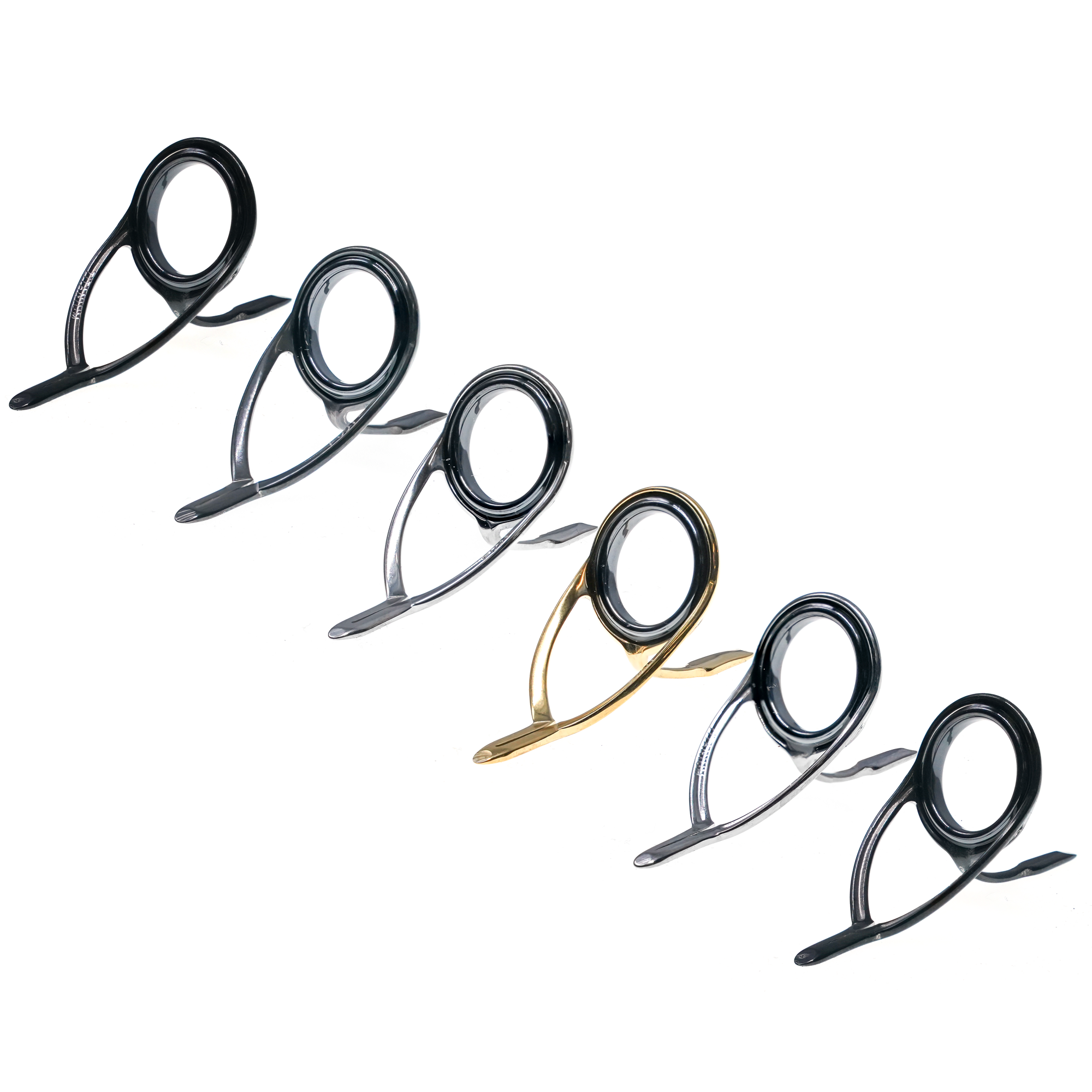

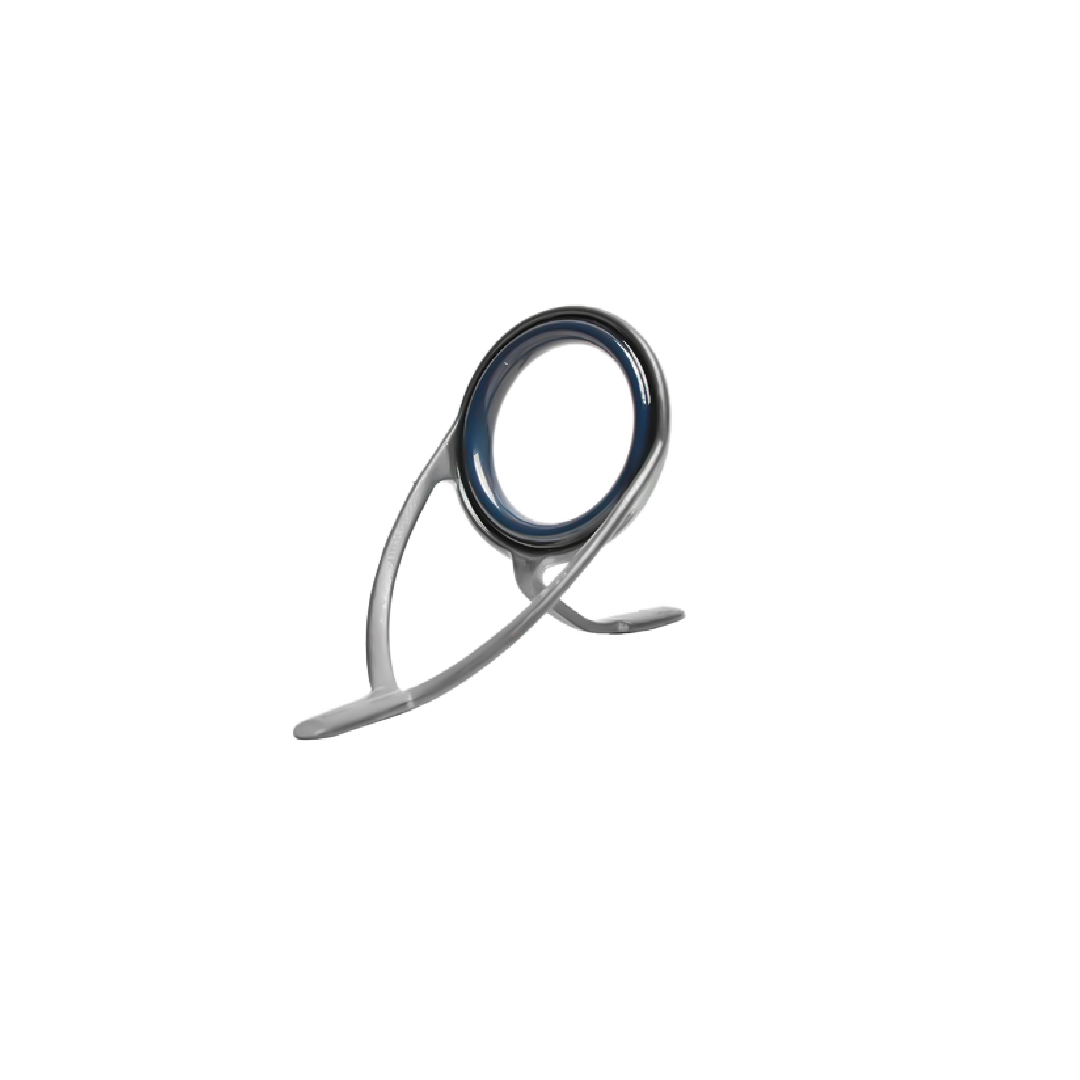

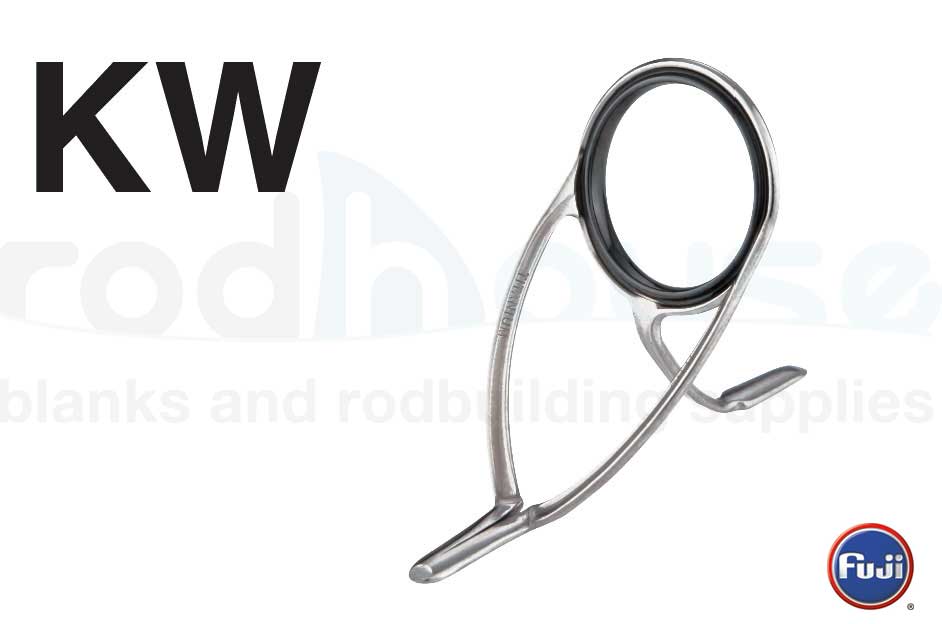

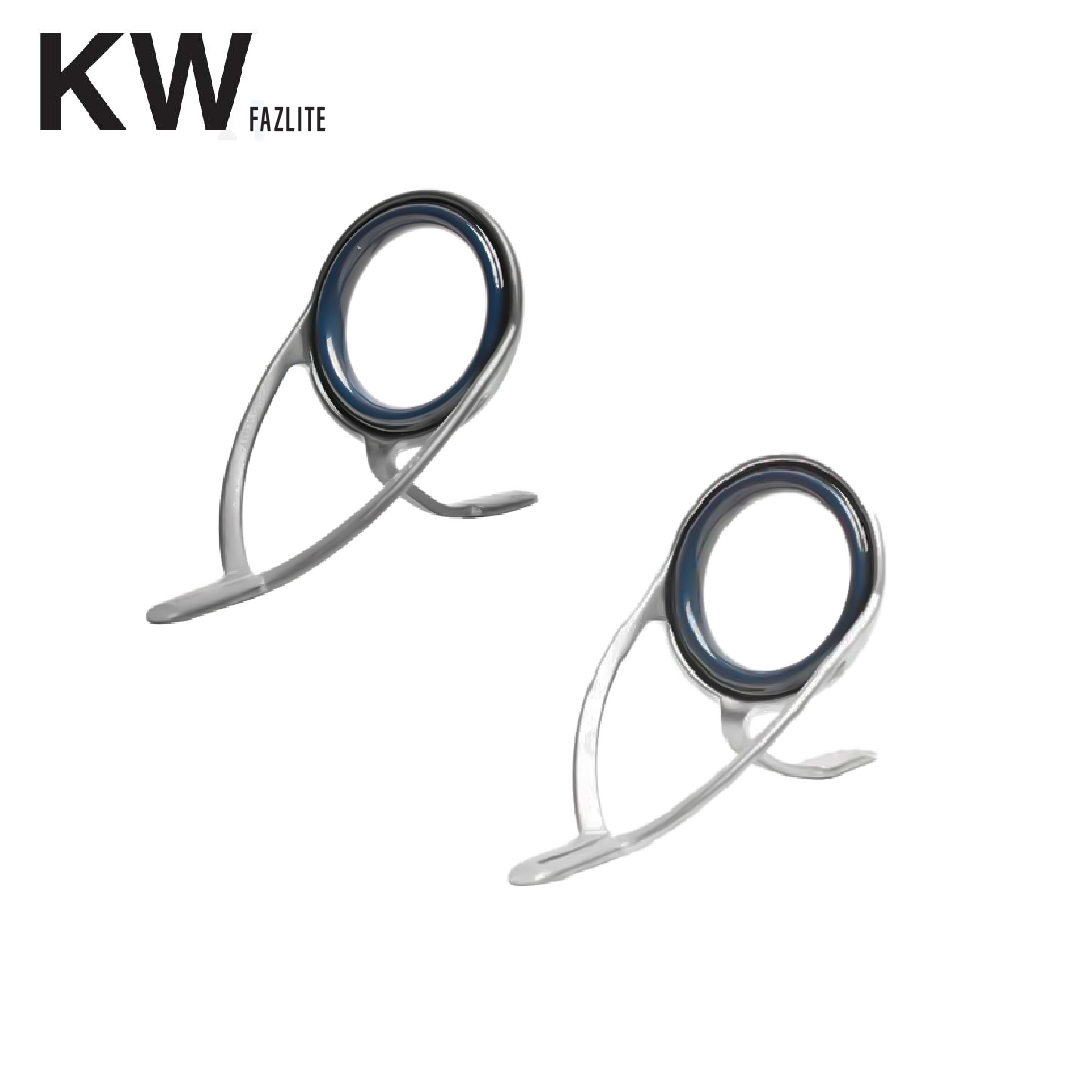

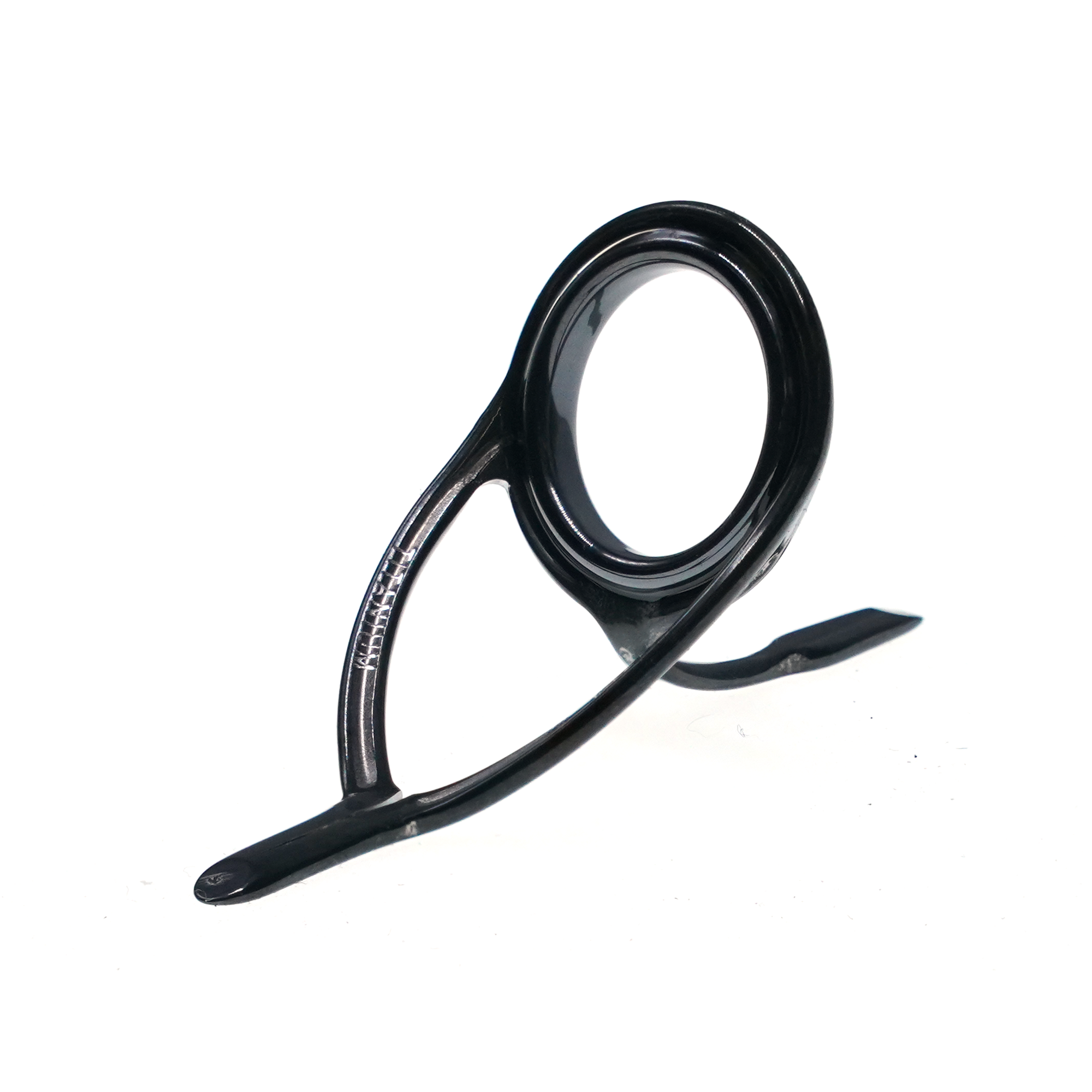

Fuji KW double foot guides: Fazlite, Alconite, SiC, Torzite

The Rodhouse take

The KW is the double foot guide we recommend most often as a stripper, and 30 reviews averaging 4.97/5 point the same way. What we really rate is the coverage: from 5.5 to 50, in Fazlite as well as Torzite, you can build an entire guide train without leaving the same frame family.

From 5.5 to 50, four ring materials

Double foot K-Series frame with a tangle free double slope, designed for braid
Deep pressed ring and short footprint, for a clean and compact wrap
17 sizes in the catalogue, from 5.5 to 50, plus a size 5 available in Torzite
30L, 40L, 10M and 12M variants for specific builds

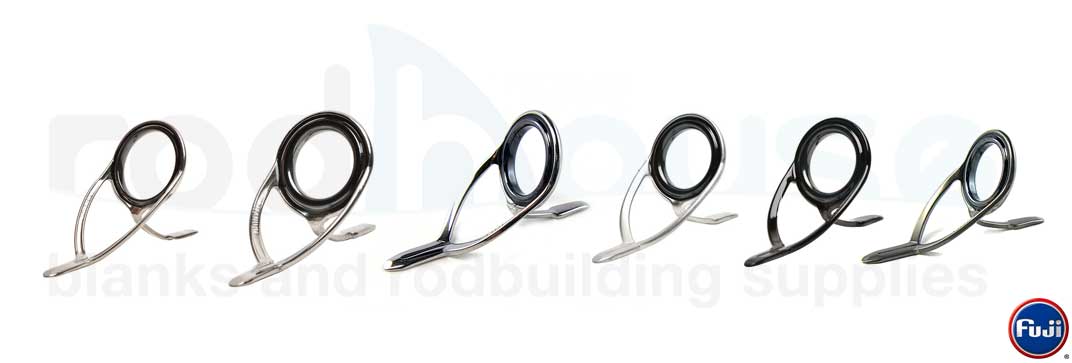

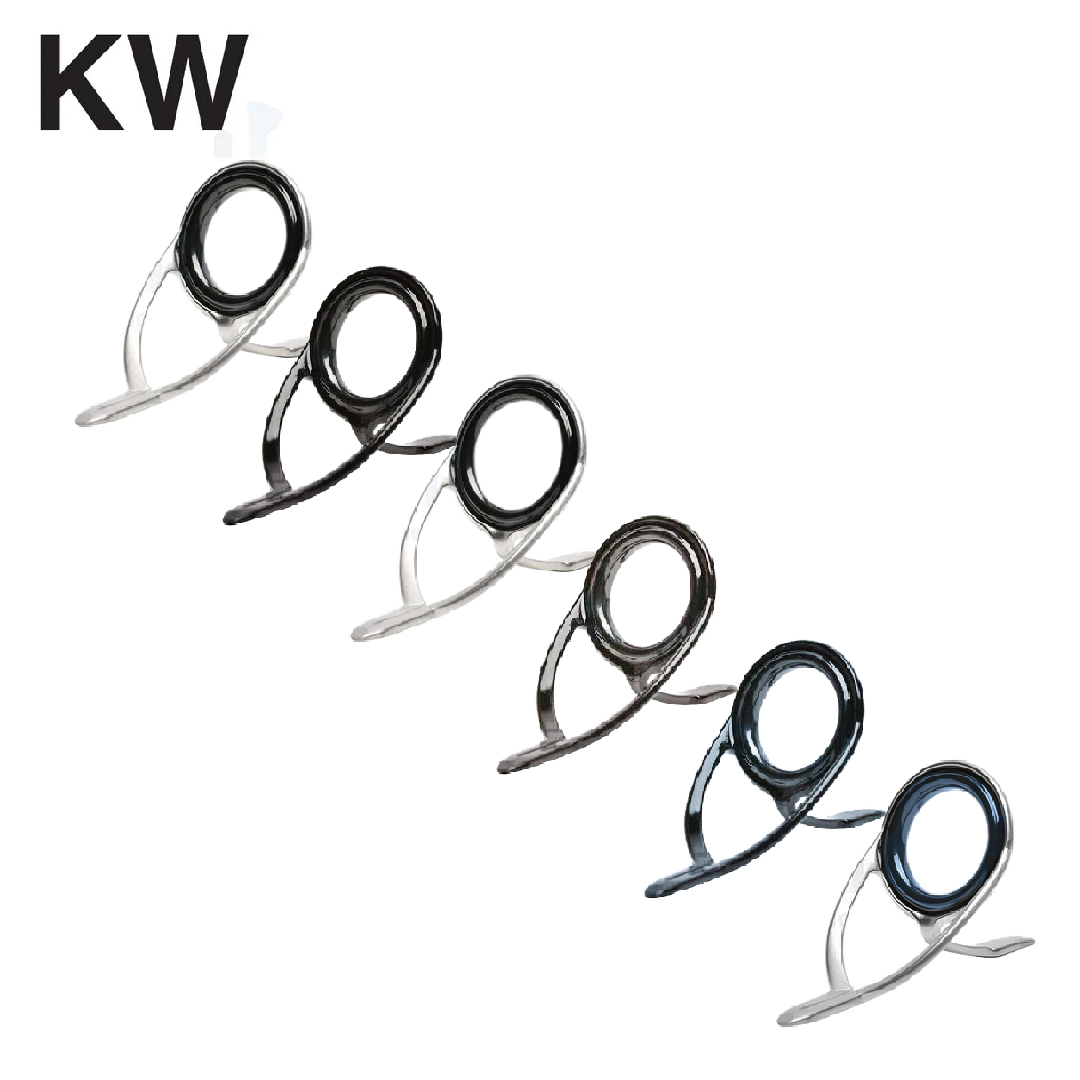

4 ring materials to choose from: Fazlite, Alconite, SiC and Torzite
Finishes: stainless, Corrosion Control (CC and BC), Gunsmoke, polished titanium and gold
Uses: casting stripper, medium to heavy spinning reduction train, surfcasting, trolling
Sold individually, to build a full train or replace a single guide

The KW on the blank: placement and ring materials

As a stripper, sending the load back to the butt

Set as a stripper guide, the KW takes the widest angle in the train, the one coming straight off the spool. Its two feet spread the load over a wide area of the blank and send the effort back towards the powerful section, which helps the rod hold its power under load. The double slope of the frame brings braid back to the centre of the ring instead of letting it wrap around the foot, and that counts on long casts as much as in a crosswind. Fuji specifies size 10 as the stripper on casting rods built on the KR Concept. Larger sizes serve as a reduction train in spinning and surfcasting.

Fazlite, Alconite, SiC or Torzite: which ring material?

All four ring materials share the same frame. The decision comes down to hardness, weight and internal diameter.

Fazlite: positioned between Concept O and Alconite, good impact and heat resistance, braid compatible
Alconite: the durability and price compromise for a versatile train
SiC: the hardest of the common Fuji ceramics, it dissipates heat better under intensive use
Torzite: a thinner ceramic, so a larger internal diameter at equal size and a real weight saving, and the only ceramic that goes down to size 5

On a light rod, weight comes first: the further a guide sits from the reel seat, the more its mass weighs on the action of the blank. For big fish or saltwater, go for a hard ceramic paired with a corrosion resistant finish. These trade offs are covered in our rod guide buying guide.

Ligature Simulator

Reference	H (mm)	L1 (mm)	L2 (mm)	L (mm)	OD (mm)
BCKWFG-5.5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5

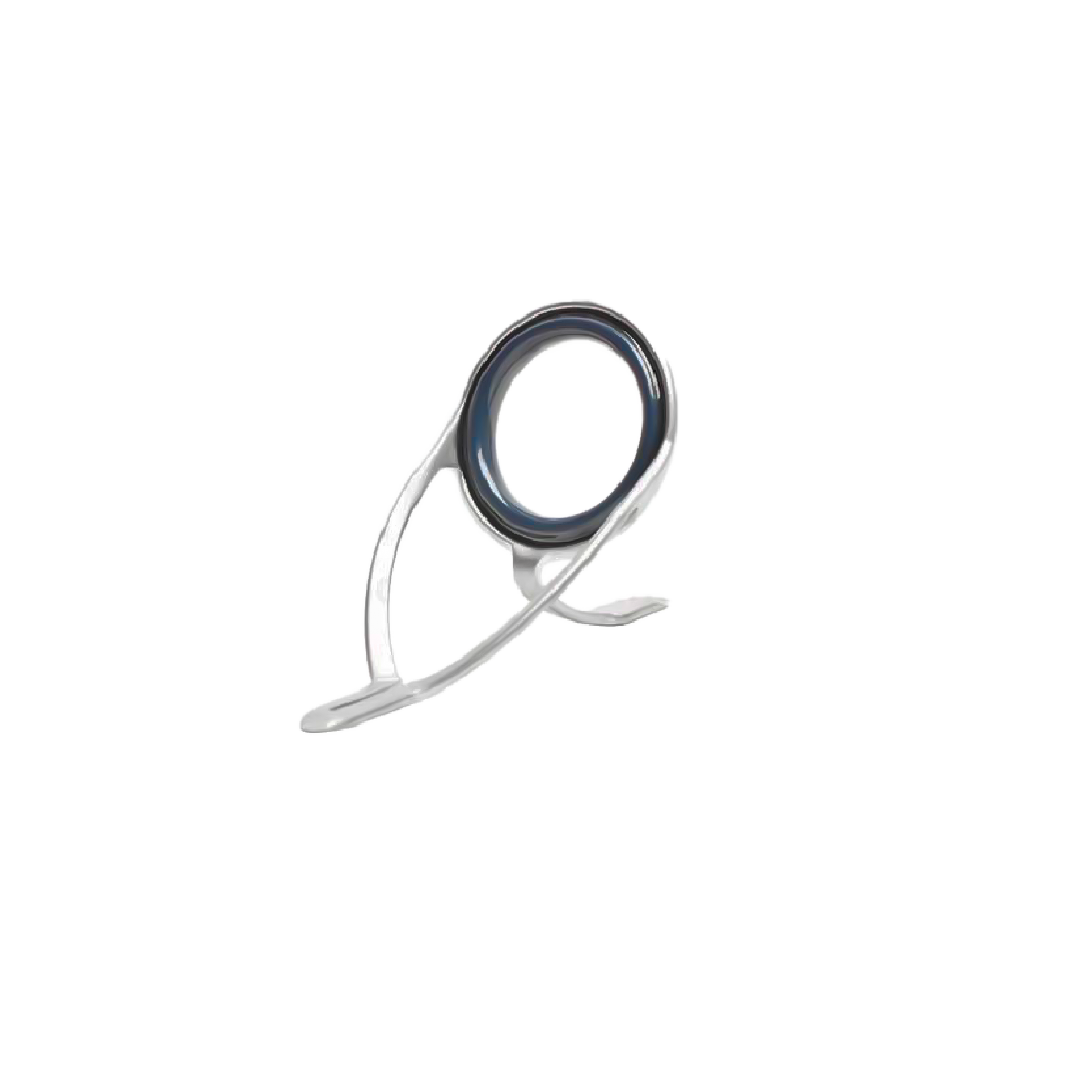

CCKWFG-5.5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
BCKWFG-6	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
CCKWFG-6	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
BCKWFG-7	10.3 mm	5.6 mm	5 mm	20.9	7.0
CCKWFG-7	10.3 mm	5.6 mm	5 mm	20.9	7.0
CCKWFG-8	12.3 mm	6 mm	5.9 mm	25.2	8.0
CCKWFG-16	21.2 mm	9.5 mm	9.5 mm	41.3	16.0
BCKWFG-25	41.2 mm	14 mm	14.3 mm	61.9	25.0
CCKWFG-25	41.2 mm	14 mm	14.3 mm	61.9	25.0
CCKWFG-30	59.6 mm	16 mm	16.4 mm	76.6	30.0
BCKWFG-30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
CCKWFG-30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
BCKWFG-40	79 mm	20.1 mm	20.4 mm	96.6	40.0

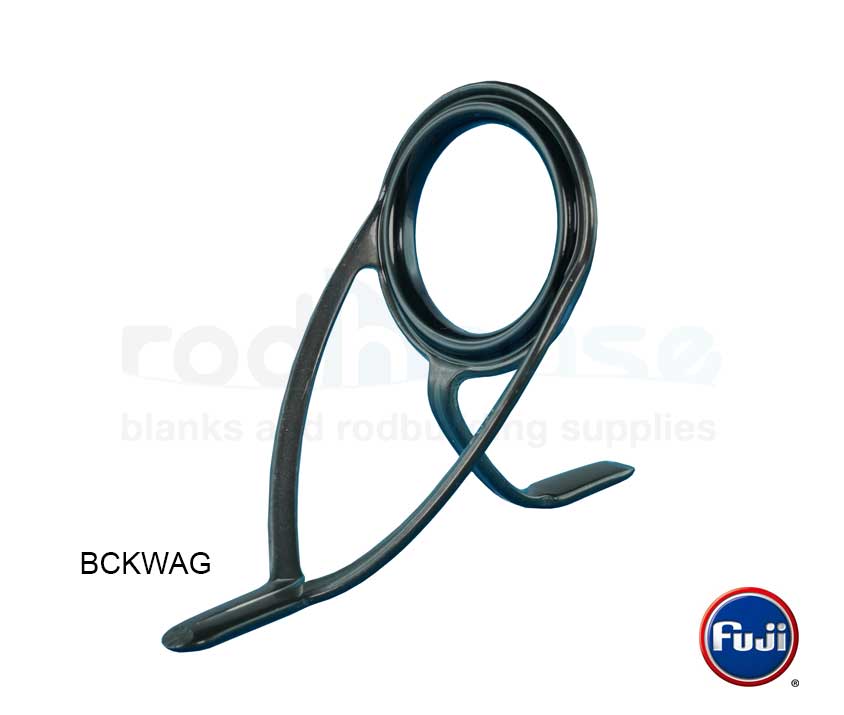

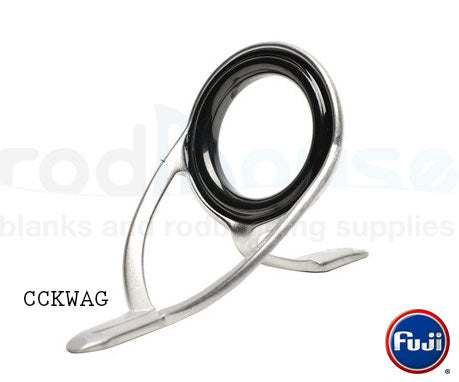

BCKWAG-5.5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
CCKWAG-5.5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
BCKWAG-6	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
CCKWAG-6	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
BCKWAG-7	10.3 mm	5.6 mm	5 mm	20.9	7.0
CCKWAG-7	10.3 mm	5.6 mm	5 mm	20.9	7.0
BCKWAG-8	12.3 mm	6 mm	5.9 mm	25.2	8.0
CCKWAG-8	12.3 mm	6 mm	5.9 mm	25.2	8.0
BCKWAG-10	14.6 mm	7 mm	6.8 mm	29.2	10.0
CCKWAG-10	14.6 mm	7 mm	6.8 mm	29.2	10.0
BCKWAG-12	17.4 mm	8 mm	8 mm	33.4	12.0
CCKWAG-12	17.4 mm	8 mm	8 mm	33.4	12.0
BCKWAG-16	21.2 mm	9.5 mm	9.5 mm	41.3	16.0
CCKWAG-16	21.2 mm	9.5 mm	9.5 mm	41.3	16.0
BCKWAG-20	28.6 mm	11 mm	11.3 mm	50.2	20.0
CCKWAG-20	28.6 mm	11 mm	11.3 mm	50.2	20.0
BCKWAG-25	41.2 mm	14 mm	14.3 mm	61.9	25.0
CCKWAG-25	41.2 mm	14 mm	14.3 mm	61.9	25.0

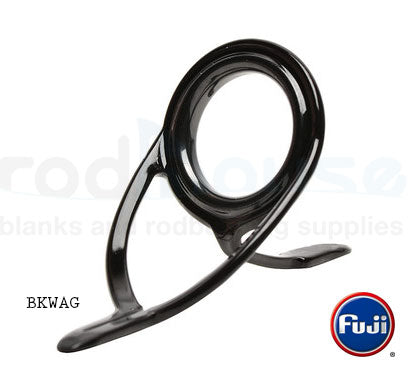

BKWAG-25	41.2 mm	14 mm	14.3 mm	61.9	25.0
BCKWAG-30	59.6 mm	16 mm	16.4 mm	76.6	30.0
CCKWAG-30	59.6 mm	16 mm	16.4 mm	76.6	30.0
BCKWAG-30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
CCKWAG-30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
BCKWAG-40	79 mm	20.1 mm	20.4 mm	96.6	40.0
CCKWAG-40	79 mm	20.1 mm	20.4 mm	96.6	40.0
BCKWAG-40L	59.7 mm	20 mm	18 mm	90.0	40.0
CCKWAG-40L	59.7 mm	20 mm	18 mm	90.0	40.0
BCKWAG-50	85.1 mm	24.1 mm	24.6 mm	113.4	50.0

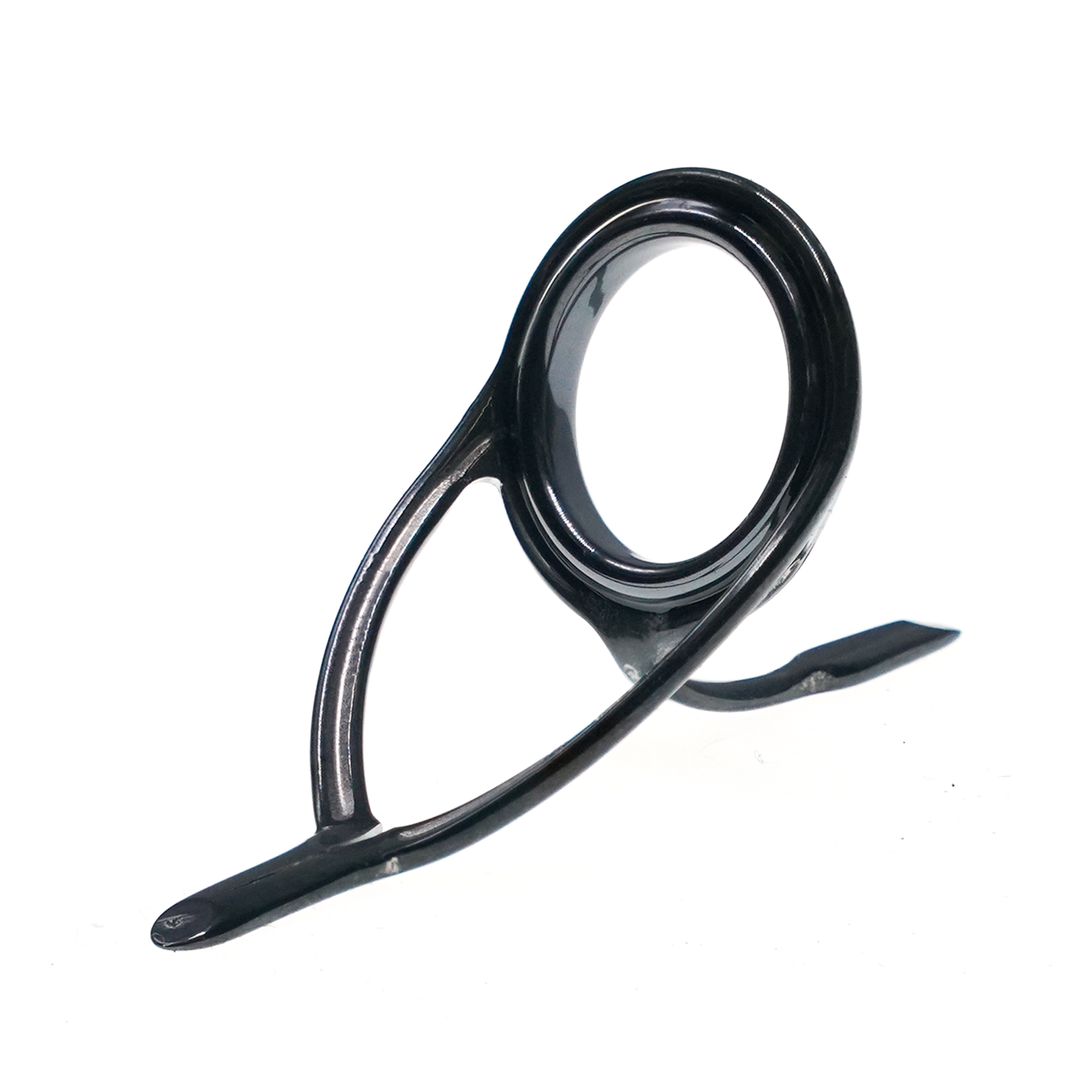

T2-KWSG5.5S	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
KWSG-5.5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
PKWSG-5.5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
GMKWSG-5.5s	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
TKWSG-5.5S	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
T2-KWSG6S	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
PKWSG-6	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
GMKWSG-6s	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
TKWSG-6S	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
T2-KWSG7S	10.3 mm	5.6 mm	5 mm	20.9	7.0
PKWSG-7	10.3 mm	5.6 mm	5 mm	20.9	7.0
GMKWSG-7s	10.3 mm	5.6 mm	5 mm	20.9	7.0
TKWSG-7S	10.3 mm	5.6 mm	5 mm	20.9	7.0
T2-KWSG8S	12.3 mm	6 mm	5.9 mm	25.2	8.0
PKWSG-8	12.3 mm	6 mm	5.9 mm	25.2	8.0
GMKWSG-8s	12.3 mm	6 mm	5.9 mm	25.2	8.0
TKWSG-8S	12.3 mm	6 mm	5.9 mm	25.2	8.0
T2-KWSG10S	14.6 mm	7 mm	6.8 mm	29.2	10.0
PKWSG-10	14.6 mm	7 mm	6.8 mm	29.2	10.0
GMKWSG-10s	14.6 mm	7 mm	6.8 mm	29.2	10.0
TKWSG-10S	14.6 mm	7 mm	6.8 mm	29.2	10.0
T2-KWSG12S	17.4 mm	8 mm	8 mm	33.4	12.0
PKWSG-12	17.4 mm	8 mm	8 mm	33.4	12.0
GMKWSG-12s	17.4 mm	8 mm	8 mm	33.4	12.0
TKWSG-12S	17.4 mm	8 mm	8 mm	33.4	12.0
IGKWSG-12	17.4 mm	8 mm	8 mm	33.4	12.0
T2-KWSG16S	21.2 mm	9.5 mm	9.5 mm	41.3	16.0

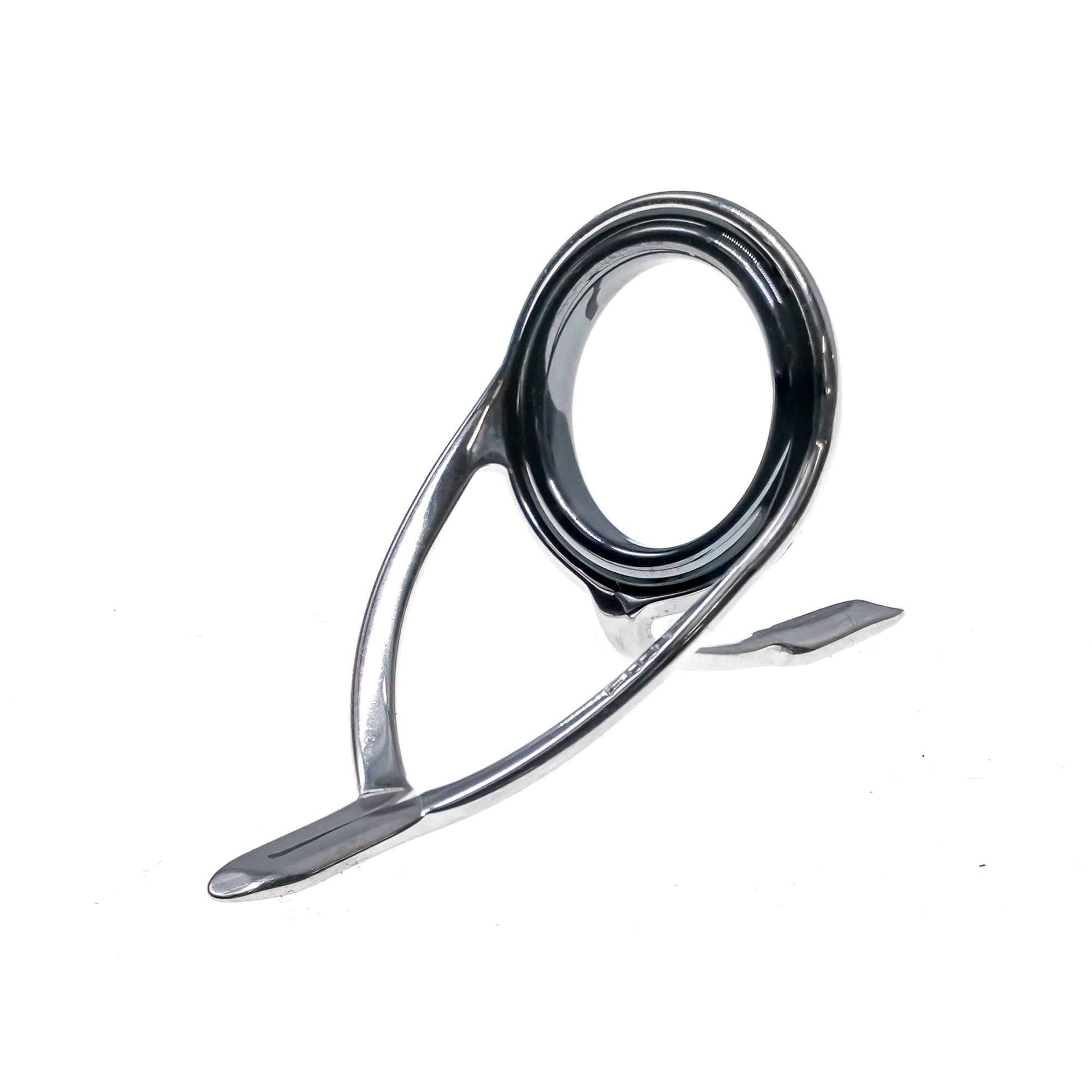

PKWSG-16	21.2 mm	9.5 mm	9.5 mm	41.3	16.0

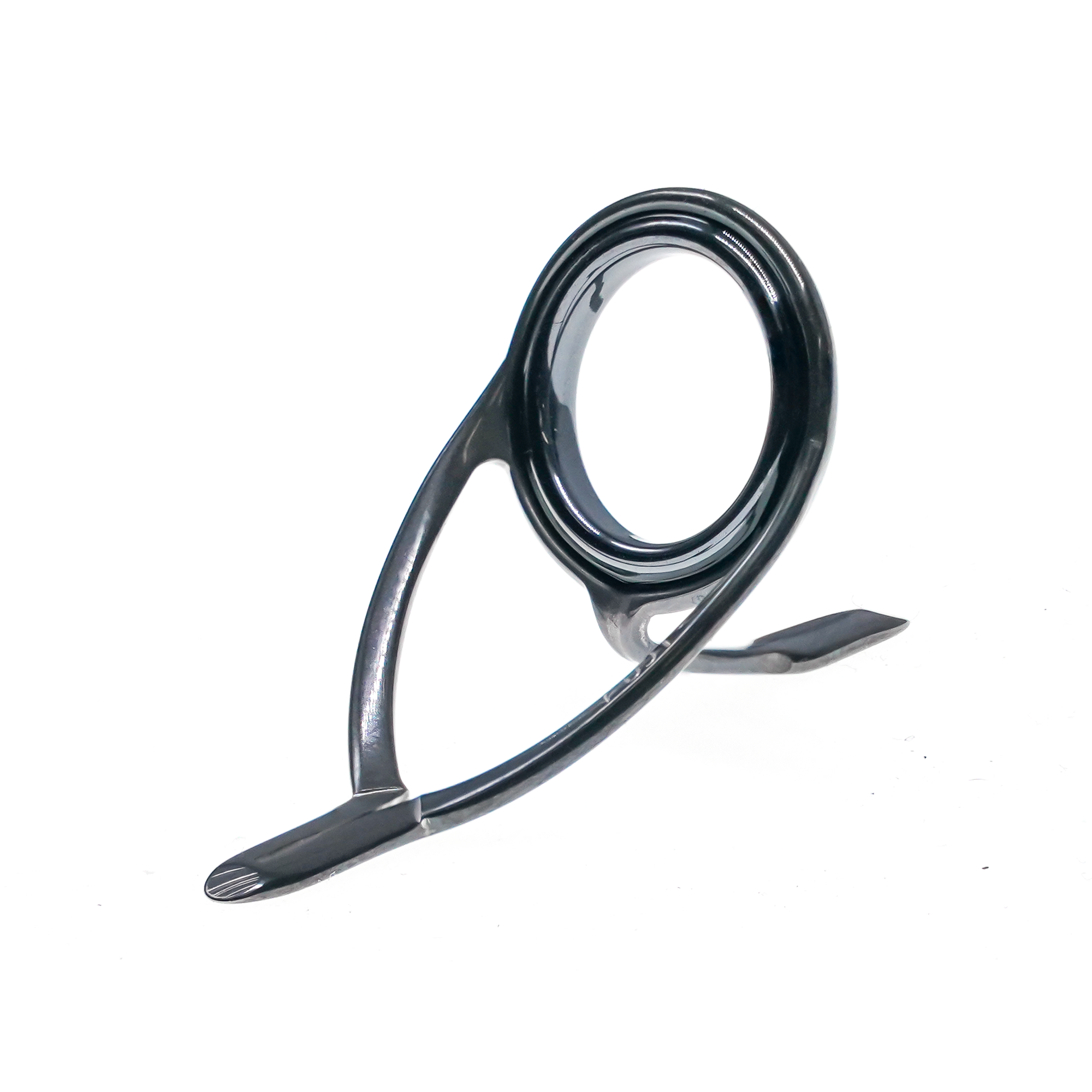

GMKWSG-16s	21.2 mm	9.5 mm	9.5 mm	41.3	16.0
TKWSG-16S	21.2 mm	9.5 mm	9.5 mm	41.3	16.0
IGKWSG-16	21.2 mm	9.5 mm	9.5 mm	41.3	16.0
T2-KWSG20S	28.6 mm	11 mm	11.3 mm	50.2	20.0
PKWSG-20	28.6 mm	11 mm	11.3 mm	50.2	20.0
GMKWSG-20s	28.6 mm	11 mm	11.3 mm	50.2	20.0
TKWSG-20S	28.6 mm	11 mm	11.3 mm	50.2	20.0
T2-KWSG25S	41.2 mm	14 mm	14.3 mm	61.9	25.0
PKWSG-25	41.2 mm	14 mm	14.3 mm	61.9	25.0
GMKWSG-25s	41.2 mm	14 mm	14.3 mm	61.9	25.0
TKWSG-25S	41.2 mm	14 mm	14.3 mm	61.9	25.0
T2-KWSG30S	59.6 mm	16 mm	16.4 mm	76.6	30.0
PKWSG-30	59.6 mm	16 mm	16.4 mm	76.6	30.0
GMKWSG-30s	59.6 mm	16 mm	16.4 mm	76.6	30.0
TKWSG-30S	59.6 mm	16 mm	16.4 mm	76.6	30.0
T2-KWSG30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
PKWSG-30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
GMKWSG-30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
TKWSG-30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
T2-KWSG40	79 mm	20.1 mm	20.4 mm	96.6	40.0
PKWSG-40	79 mm	20.1 mm	20.4 mm	96.6	40.0
GMKWSG-40	79 mm	20.1 mm	20.4 mm	96.6	40.0
TKWSG-40	79 mm	20.1 mm	20.4 mm	96.6	40.0
T2-KWSG40L	59.7 mm	20 mm	18 mm	90.0	40.0
PKWSG-40L	59.7 mm	20 mm	18 mm	90.0	40.0
GMKWSG-40L	59.7 mm	20 mm	18 mm	90.0	40.0
TKWSG-40L	59.7 mm	20 mm	18 mm	90.0	40.0
T2-KWSG50					50.0
PKWSG-50					50.0
GMKWSG - 50					50.0
TKWSG-50					50.0

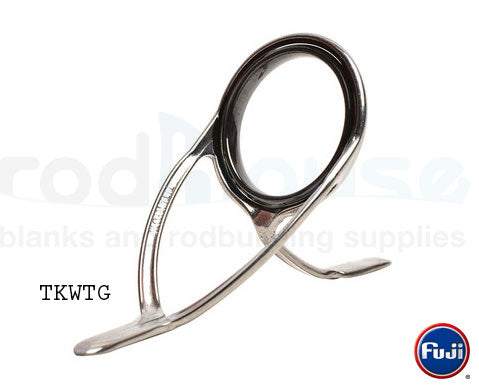

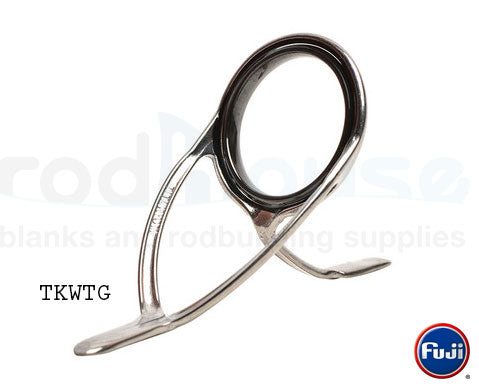

TKWTG-5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
TKWTG-5.5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5

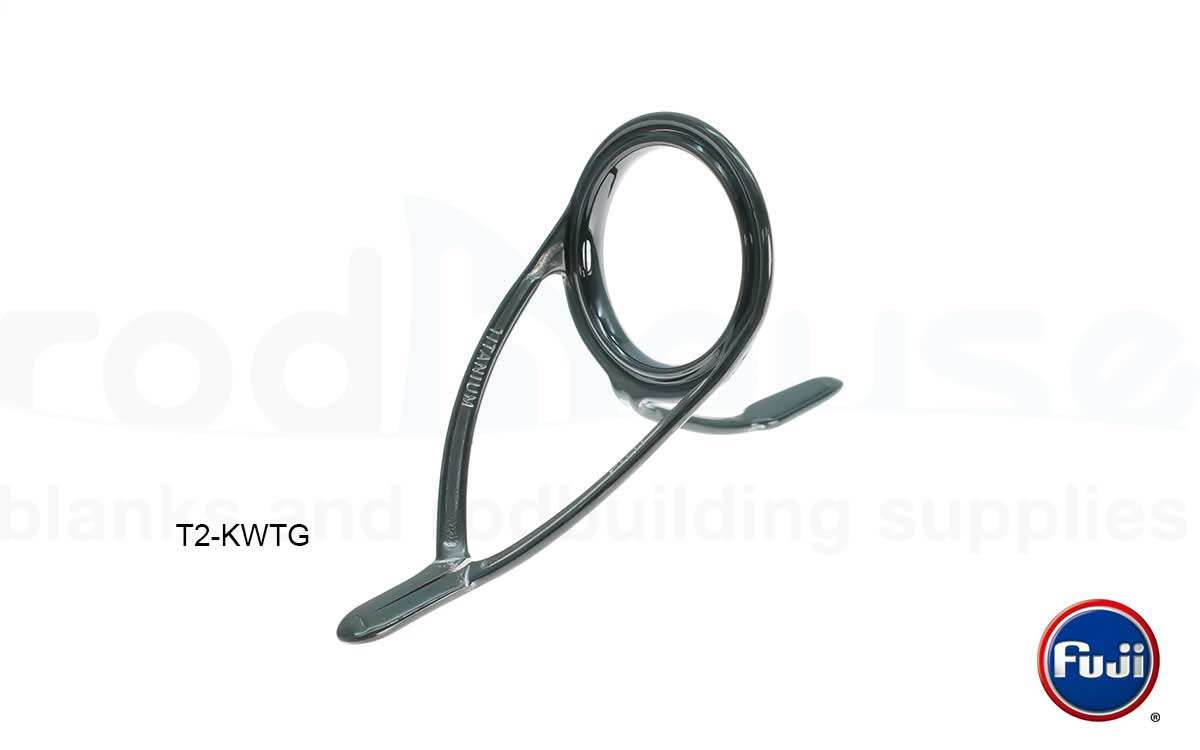

T2-KWTG5.5	7.6 mm	5.1 mm	4.7 mm	17.7	5.5
TKWTG-6	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
T2-KWTG6	8.7 mm	5.3 mm	4.8 mm	20.0	6.0
TKWTG-7	10.3 mm	5.6 mm	5 mm	20.9	7.0
T2-KWTG7	10.3 mm	5.6 mm	5 mm	20.9	7.0
TKWTG-8	12.3 mm	6 mm	5.9 mm	25.2	8.0
T2-KWTG8	12.3 mm	6 mm	5.9 mm	25.2	8.0
TKWTG-10	14.6 mm	7 mm	6.8 mm	29.2	10.0
T2-KWTG10	14.6 mm	7 mm	6.8 mm	29.2	10.0
TKWTG-10M	19.3 mm	9.6 mm	8.4 mm	36.5	10.0
TKWTG-12	17.4 mm	8 mm	8 mm	33.4	12.0
T2-KWTG12	17.4 mm	8 mm	8 mm	33.4	12.0
TKWTG-12M	26.1 mm	12 mm	10.3 mm	42.5	12.0
TKWTG-16	21.2 mm	9.5 mm	9.5 mm	41.3	16.0
T2-KWTG16	21.2 mm	9.5 mm	9.5 mm	41.3	16.0
TKWTG-20	28.6 mm	11 mm	11.3 mm	50.2	20.0
T2-KWTG20	28.6 mm	11 mm	11.3 mm	50.2	20.0
TKWTG-25	41.2 mm	14 mm	14.3 mm	61.9	25.0
T2-KWTG25	41.2 mm	14 mm	14.3 mm	61.9	25.0
TKWTG-30	59.6 mm	16 mm	16.4 mm	76.6	30.0
T2-KWTG30	59.6 mm	16 mm	16.4 mm	76.6	30.0
TKWTG-30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
T2-KWTG30L	49.4 mm	16.3 mm	14 mm	71.5	30.0
TKWTG-40	79 mm	20.1 mm	20.4 mm	96.6	40.0
T2-KWTG40	79 mm	20.1 mm	20.4 mm	96.6	40.0
TKWTG-40L	59.7 mm	20 mm	18 mm	90.0	40.0
T2-KWTG40L	59.7 mm	20 mm	18 mm	90.0	40.0
